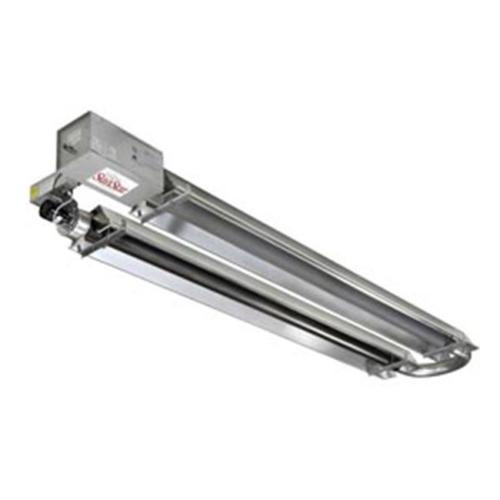

Sunstar SIU 40' 125K BTU Infrared Tube Heater NG

SIU Series Features

• CSA design certified
• Sidewall or through the roof venting

• Vented or indirect vented operation

Introducing TISSTM Tube Integrity Safety Shut-Off System

Space-Ray’s patent pending innovative safety feature for positive pressure radiant tube heaters is called the “Tube Integrity Safety System” (TISS).

In the unlikely event of a tube failure, TISS has been designed to automatically shut off the heater. The revolutionary TISS uses a simple principle to place an electrically insulated aluminum wire in tension above the reflector. Low voltage is then continuously passed along the wire in line with the gas control circuit. If heat levels increase due to heat exchanger failure, the wire melts and the safety circuit is broken, breaking the 24 volt circuit and shutting down the heater.

You may never know it is there, but it provides peace of mind.

Vacuum System

• Products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
• No draft hoods, totally enclosed combustion chamber
• Heavy duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
• 30 second per-purge period before ignition
• Diaphragm air switch for proof of venting before gas flow and ignition

Radiant Emitter Tube System

• 4” O. D. heat treated aluminized steel combustion chamber (10’ length)
• Standard highly emissive radiant tubes (10’ lengths)
• 5 year limited warranty on all tubes
• Suitable for horizontal or angle mounting up to 45 degrees
• Up to 75 feet sidewall vent capability

Reflector System

• Highly efficient aluminum reflectors
• Individual reflectors can be rotated up to 45 degrees to direct heat where needed
• Optional end, corner, U-bend and side extension reflectors

Burner System

• Heavy duty cast iron burner
• Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control
• Burner inspection sight glass
• Step-opening redundant combination gas valve for quite ignition and added safety
• Inside or outside air for combustion
• Up to 50 ft. outside combustion air capability
• Diagnostic Monitoring Light System
