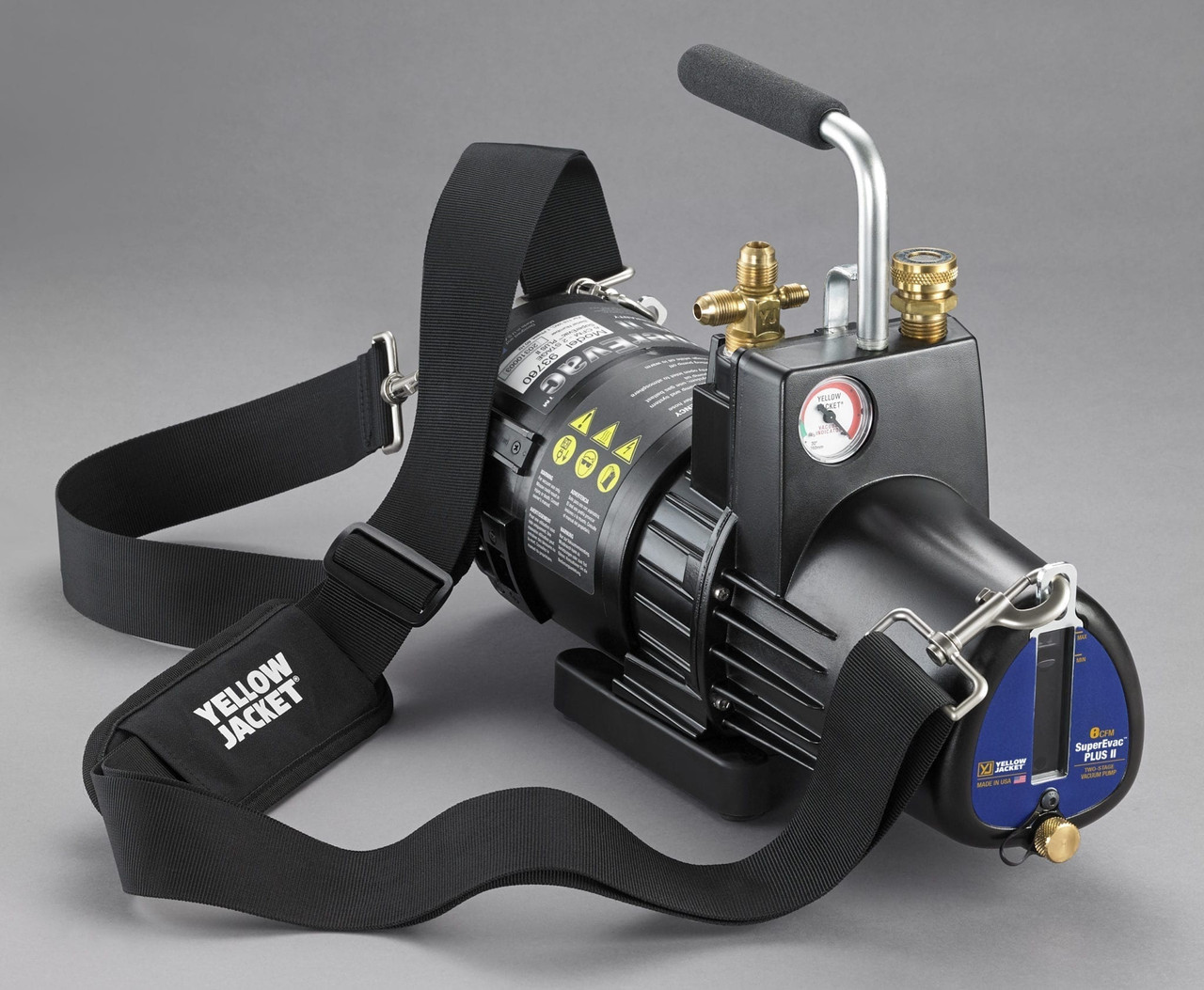

Yellow Jacket 93780 SuperEvac Plus II Vacuum Pump 8 CFM

Yellow Jacket 93780 SuperEvac Plus II Vacuum Pump 8 CFM

Features:

• High Torque, High Efficiency, Brushless DC (BLDC) Motor

  • High Torque means power is always there on demand
  • High efficiency means less mechanical and electrical stress; and long life
  • Easily handles supply voltage variations; especially low voltage conditions
  • Starts and operates in extreme temperature conditions, especially low temperatures
  • Over 20% lighter than AC motor-driven pumps
  • No low battery condition – No Battery to let you down

  Performance and Ergonomics

  • Convenient shoulder strap for easy carrying over long distances with built-in mount points
  • Small oil bath requires less oil
  • Built-in cooling fins to cool pump and increase performance
  • Oil suck-back valve
  • Elongated oil sight glass – easier to see oil level and condition
  • Tethered oil drain plug

  Features & Benefits

  • Designed for use with A2L systems
  • Isolation valve for oil changes without losing vacuum in the system
  • Gas ballast valve keeps oil cleaner, longer during evacuation
  • Internal intake check valve to help prevent oil backup into the system and to maintain vacuum during a power failure
  • Intake filter screen keeps damaging particles from entering the pump
  • Heavy duty rotors and bearings
  • Built-in vacuum gauge
  • Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust – threaded to attach a garden hose for exhausting to a remote location.
  • Large brass oil drain for easy access to fast oil changes
  • Downward angled oil sump to remove contaminants usually trapped in other pump designs
  • Non-sparking switch for A2L compliance
  • Locking, low-profile IEC connector with 9’10” (3 meter) power cord to prevent accidental removal
  • Heavy duty steel handle
  • Lift hook for hoisting pump to rooftops
  • Two-year warranty
  • Made in USA

Specifications:

• 1/4", 1/2" and 3/8" Male Flare Intakes
• BLDC 1/2 Hp
• 28 oz Oil Capacity
• 8 CFM
