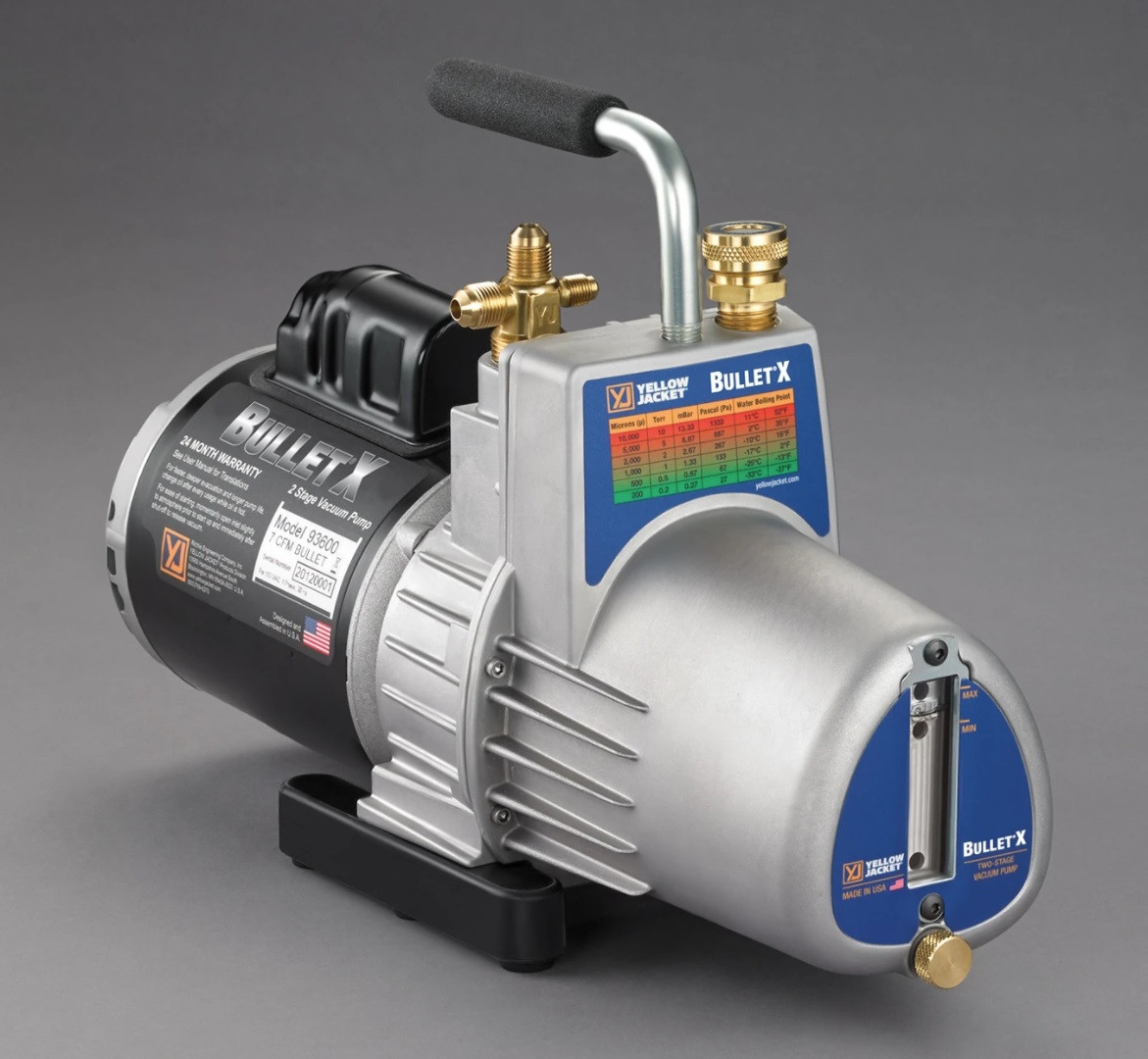

Yellow Jacket 93600 7 CFM Bullet Vacuum Pump

Yellow Jacket 93600 7 CFM Bullet Vacuum Pump

The Yellow Jacket Bullet vacuum pump is an affordable option for HVAC technicians who know the importance of pulling a deep vacuum. The Bullet pulls down to 25 microns or better, protecting from contaminants and noncondensable gases in the HVAC system, which can damage components, reduce efficiency and cause system failure. Additional features include:

• Highly efficient, two-stage, rotary vane, oil-sealed vacuum pump at a price that fits your budget.
• Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust - threaded to attach garden hose for exhausting to remote location.
• Large oil sight glass for easy monitoring of oil level.
• Large brass oil drain for easy access to fast oil changes.
• Internal intake check valve prevents oil backup into the system during a power failure.
• Intake filter screen keeps damaging particles from entering the pump.
• Heavy-Duty rotors and bearings.
• Heavy-Duty steel handle for well balanced carrying.
• Tethered port caps stay with them pump.
• Stable base- wide stance metal with rubber overlay.
• Two year limited over-the-counter warranty
• Made in the U.S.A.

Specifications:

Free Air Displacement: 7 CFM

Number of Stages: 2-stage rotary vane

Field Blankoff: 25 Microns

Intake: 1/4" x 3/8" x 3/8"

Motor: 1/2 Hp  1725 RPM

Internal Capacitor Thermal Overload: Temperature rise 40 degree C

Voltage (Single Phase) 115V / 60 HZ

Power Cord: 6' - Motor mounted switch

Oil Capacity: 28 oz
