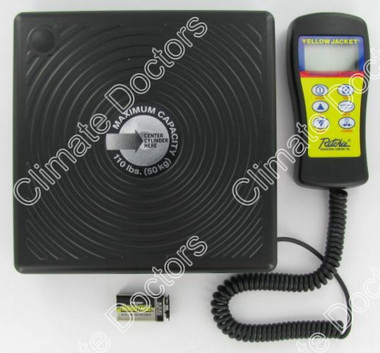

Yellow Jacket 68802 Electronic Refrigerant Scale

Put this rugged scale to work with any refrigerant in any system and eliminate the time and cost of charging cylinders. The time-saving process also eliminates refrigerant transfer from tank to cylinder to system.

You weigh the refrigerant container and charge directly into the system or recover from the system. No concern about residual refrigerant in a charging cylinder.

Self-contained, the scale is ready to use in the carrying case or removed and set on a level surface. Select 110 or 220-lb. capacity (50 or 100 kg).

Scale Specifications 110 lb.

• Capacity: 110 lbs. (50 kg)
• Resolution: 0.1 oz. / 0.01 lb./ 0.01 kg
• Accuracy: +/- 0.5 oz., +/- 0.03 lb., +/- 0.015 kg} Or 0.1% of reading, whichever is greater
• Total unit weight: 9 lbs. (4.1 kg)
• Case Size: 15.5" L x 12.25" W x 3.25" H (394 x 311 x 83 mm)
• Module display: Sealed LCD with high resolution 0.5" characters
• Keypad: moisture resistant membrane keypad with tactile metal domes
• Components: Industrial grade
• Operation method: Oversized strain gauge bridge
• Platform size: 9" x 9" (228 x 228 mm)
• Battery: 25 hours (continuous use approx.)
• Battery: 9V alkaline
• Operating temp: 32° to 122°F (0° to 50°C)
• Storage temp: -4° to 158°F (-20° to 70°C)
