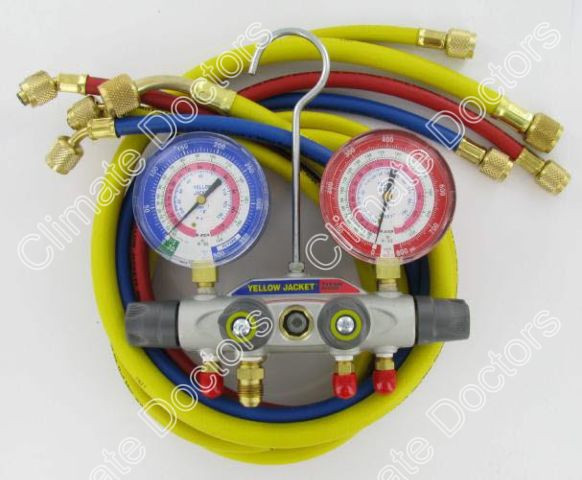

Yellow Jacket 49977 TITAN 4-V Manifold Gauges W/Hoses

Forged aluminum alloy body for increased strength and reliability. The new TITAN Test and Charging Manifold is the first forged aluminum manifold in the industry.
Gauges are Liquid- Filled.

Special aluminum alloy body makes this unit lightweight for handling ease with the durability and reliability required for repeated, rugged use.

• Large, easy-to-read 3-1/8" (80 mm) steel case red and blue, 1% accuracy (Class 1) gauges; front access for easy field recalibration; optional protective gauge boots available
• Proven, double “O” ring piston for reliability and long service life
• Exclusive 100 mesh filter in-line on all flare fittings helps keep out particulate material and extend the life of the seats
• Sight glass to easily view refrigerant movement and condition during charging and recovery
• Heavy duty hook won’t pull out

4-Valve Features/Benefits

• Fourth hose to enable connection to high/low sides, refrigerant tank, and recovery unit or vacuum pump for diagnostics, evacuation and charging without switching hoses
• 3/8" vacuum port for use with larger hose to cut evacuation time by up to 33 percent (all other fittings on unit are 1/4")

* Manifold comes standard with certified gauges.

This model can be used with and includes 60" Plus II hoses R/Y/B. We carry the full line of Yellow Jacket. Let us know if you do not see what you are looking for.

• R-22
• R-404A
• R-410A
