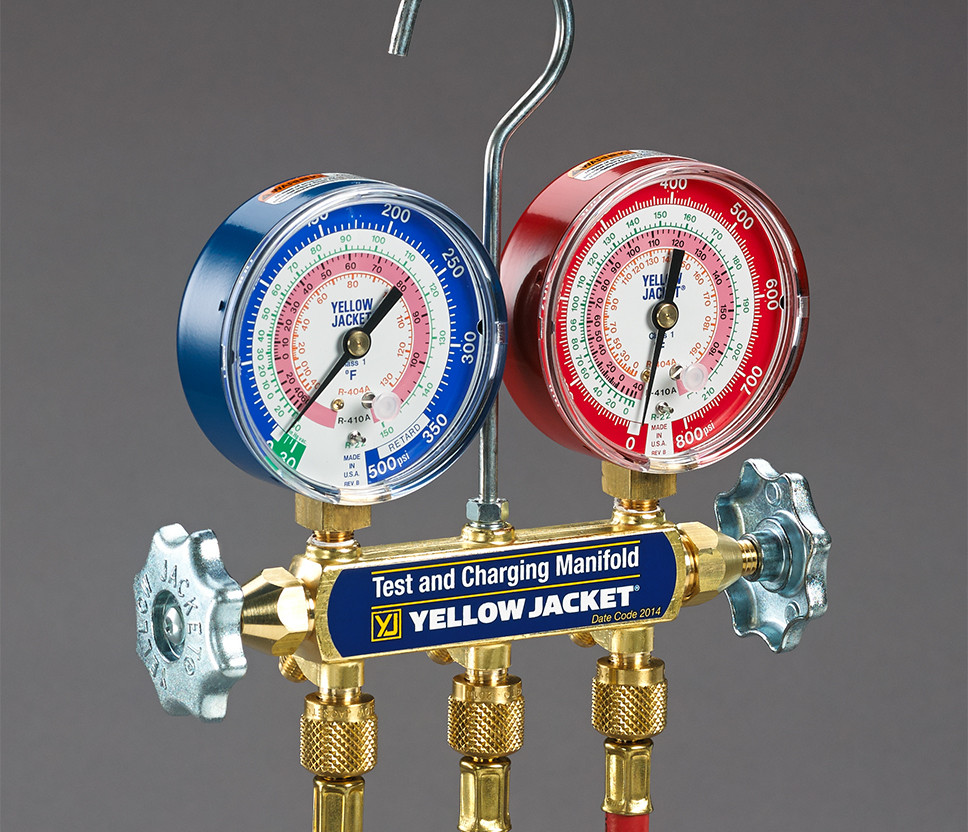

Yellow Jacket 42201 Manifold R22/404A/410A

Yellow Jacket 42201 Series 41 2-Valve Manifold with 60 in Ball Valve Hoses, psi, R22/404A/410A, °F

• Large, easy-to-read 3-18 inch gauges feature steel cases with polycarbonate crystaland with color-coded scales
• Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
• Sliding double O-ring pistons reduce wear
• Long life nylon seats
• Forged brass body for durability
• Full-size metal valve handels make for easy operation
• Full porting maximizes capacity and flow
• This unit includes color-coded, 60" PLUS II hoses with compact ball valve end fittings
• Hose assemblies UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure
• Made in the USA

The Yellow Jacket 42201 Series 41 2-Valve Manifold has larger, easier to read 3-1/8" color-coded gauges in rugged steel cases with polycarbonate crystals. These gauges feature 1% accuracy (Class 1) for an exact reading in critical charge systems. It uses R22/404A/410A Refrigerant, with pressure measured in psi and temperature displayed in °F.
