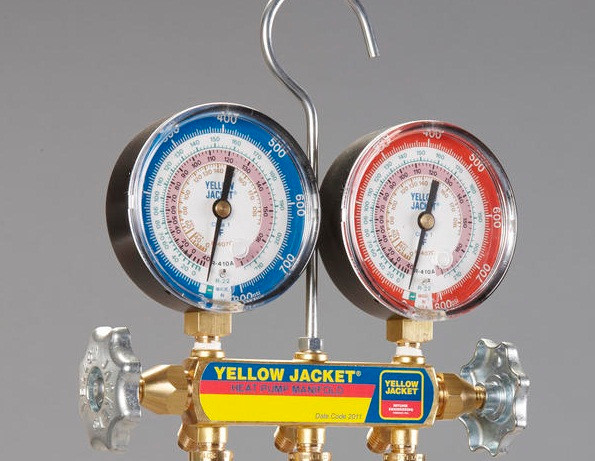

Yellow Jacket 42041 Heat Pump Manifold

Yellow Jacket 42041 Heat Pump Manifold*

The YELLOW JACKET Heat Pump Manifold features two 800 psi gauges to read all heat pump pressure conditions. Traditional low side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the low side gauge of the YELLOW JACKET Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode or transition.

Both black steel case gauges are 3-1/8” with 1% accuracy full scale. The heat pump manifold temperature scales cover the three most common refrigerants used in heat pumps: R-22, R-410A and R-407C.

Features:

• Large 3-1/8" gauges feature steel cases with polycarbonate crystal
• High- and- low-side gauges read up to 800 psi
• Color-coded scales - larger dials are bold and easy to read
• Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
• Proven sliding double "O"-ring pistons reduce wear
• Long life nylon seats
• Forged brass body for durability
• Full porting maximizes capacity and flow
• Full-size metal valve handles for easy operation
• Made in USA

*Manifold Only
