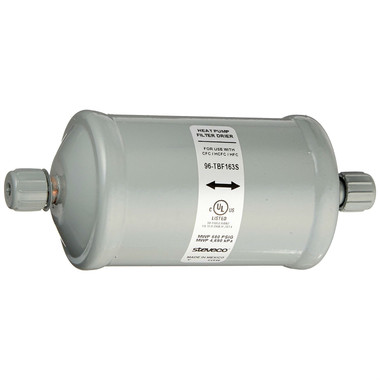

White Rodgers TBF163S Heat Pump Drier Bi-Flow 3/8”

Overview

Bi-directional driers are designed to provide complete protection to your heat pump or reverse cycle system. The compact design filters contaminants, and removes moisture & acids during the cooling & heating cycles. Internal check valves prevent the release of collected contaminants when the heat pump cycles from the heating to cooling modes.

Features

• Proven, nylon internal check valves
• Solid block desiccant core: a composite of molecular sieve and activated alumina
• Provides high moisture, organic and inorganic acid removal
• The addition of charcoal to the desiccant core allows for the removal of wax that may occur at low evaporator temperatures
• Nickel plated SAE flare and solid copper ODF fittings
• Corrosion resistant paint

INSTALLATION NOTE:
The drier may be installed in any position in the reversing liquid line.

SELECTION NOTE:
Given the proper liquid line size, connection type and tonnage of the refrigerant system, the correct drier may be selected using the chart found in the "Product Information/Specifications" document below. Choosing a unit size with sufficient water capacity to reduce moisture content of the system to a safe level should be considered.
