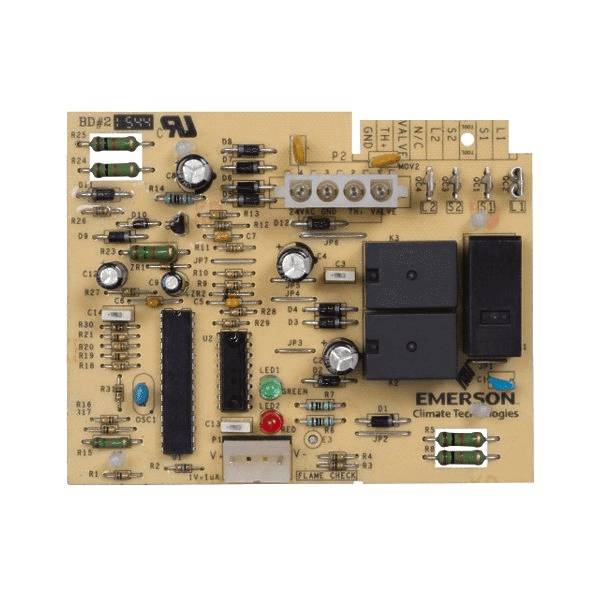

White Rodgers 50E70-820 Non-Integrated HSI Furnace Control for Trane

Image 1

Hover over image to zoom

  • Image 1
SKU:
50E70820 WHI

 Product Description

White Rodgers 50E70-820 Commercial RTU & Package Unit Ignition Controls

For Trane Non-Integrated ignition, single stage

Features
Direct replacement and adaptor board style controls
For Hot Surface Ignition Systems
Non-Integrated model provides burner supervision

Specifications
Stages—Single Stage
Ignition Type—HSI
Ignitor Voltage—120 Vac
Inducer Motor/Blower Motor—PSC/PSC
Thermostat Inputs—SYSTEM 4 PIN CONNECTOR
Includes Wiring Accessories—No
Mounting Options—Adaptor Board
Operating Voltage—18 to 30 Vac
Ambient Operating Temperature— -40 to 175°F (-40 to 79°C)
Operating Humidity—0 to 95% relative humidity (non-condensing)
