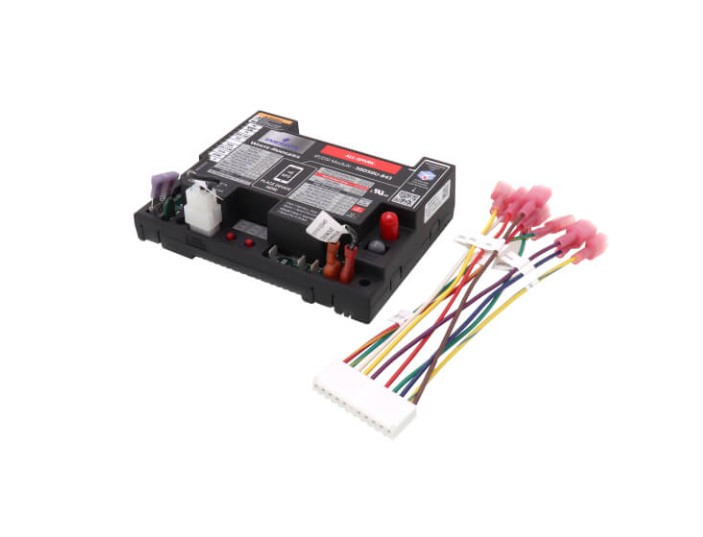

White Rodgers 50D50U-843 Universal Single Stage HSI Integrated Furnace Control Kit

Hover over image to zoom

  • Image 1
  • Image 2
SKU:
50D50U843

 Product Description

Description

50D50U-843, All-Spark Universal Non-Integrated Ignition Module - Integrated NFC for Configuration and Diagnostics using the White-Rodgers Connect App. Replaces over 800 24V IP + DSI part numbers.

Features


  • Configurable for both 24V intermittent pilot and direct spark ignition modules
  • Streamline inventory by replacing over 800 24V IP/DSI part numbers
  • Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
  • 7-Segment display provides additional configuration options and expanded fault code message reporting
  • Rajah and spade spark terminals on-board eliminate the need for an external adapter
  • For use in natural and lp gas applications



Specifications


  • Voltage (Low): 24 Vac, 50/60 Hz
  • Voltage (Line): 120 Vac, 50/60 Hz
  • Temperature Range Ambient Operating: -40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
  • Humidity Range: 5% to 93% relative humidity (non-condensing)
  • Certifications: UL Recognized (Canada & US)
