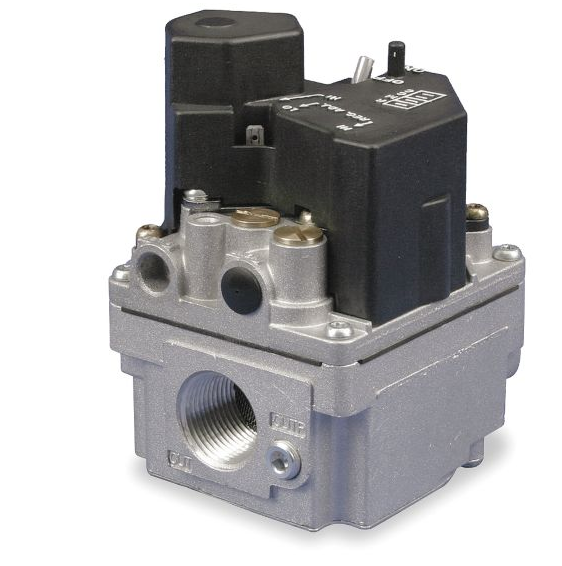

White-Rodgers 36H64-463 2 Stage Gas Valve 3/4 x 3/4

The 36H Combination Gas Control Valve is a Versatile Multifunction Control Designed to Meet the Requirements for Use with Intermittent
Ignition Systems (Direct Ignition, Proven Pilot, HSI). 36H is our Highest Capacity Combination Gas Valve.

Features:

• Adjustable regulator.
• Quiet operation redundant design.
• Inlet/outlet screens.
• Tamper resistant screws.

Specifications:

Electrical Rating (36H) . . . . . . . . . . . . 0.41 amps (Single stage)
0.54 amps (Two stage)
Ambient Temp . . . . . . . . . . . . . . . . . . . -40° to 175°F (-40° to 79°C)
Pressure Rating . . . . . . . . . . . . . . . . . . 1/2 PSI (14.0” W.C.)
Voltage . . . . . . . . . . . . . . . . . . . . . . . . 24 VAC
Frequency . . . . . . . . . . . . . . . . . . . . . . 50/60 Hz

Model: 36H64-463

Voltage: 24 Volt

Btu/h Capacity: 300,000

 Type Gas: Nat/LP

 Pipe Size: 3/4 x 3/4

 Opening Characteristics: Fast

 Stages: 2

 HSI/DSI: Yes

 Pilot Type: Proven Pilot, Intermittent Pilot

Side Taps: No

Gas Conversion Kit Included: Yes

Reducer Bushing Kit Included: Yes

Inlet/Outlet Pressure Tap Included: Yes
