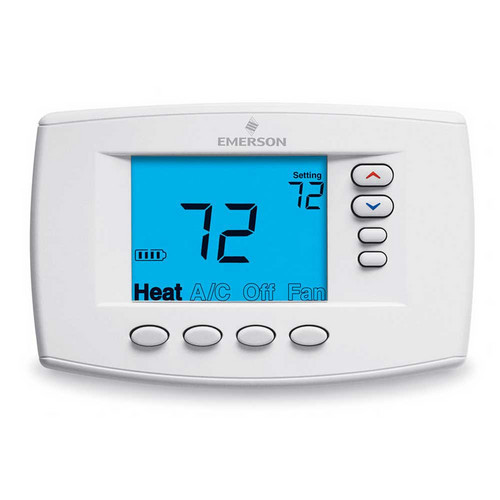

The fastest-growing customer segment in history - Boomers -asked for a thermostat that is easier to read, easier to understand and easier to use. BLUE Easy Reader thermostat offers display numbers and letters twice as large as most other thermostats, homeowner-friendly language and mode buttons with one-touch functionality for easy operation.
Single Stage / Multi-Stage / Heat Pump
Non-Programmable or Selectable 7-Day Programmable Thermostat
Hardwired or Battery Powered with Power Stealing Assist
6-Square-Inch Display
Features:
Specifications:
Electrical Rating:
Hardwire . . . . . . . . . . . . . . . . . . . . . . . 20-30 VAC, NEC Class II 50/60Hz
Battery Power . . . . . . . . . . . . . . . . . . . mV to 30 VAC, NEC Class II, 50/60 Hz or DC
Terminal Load . . . . . . . . . . . . . . . . . . . 1.5 A per terminal,
2.5 A maximum all terminals combined
Setpoint Range . . . . . . . . . . . . . . . . . . 45 to 99°F (7 to 37°C)
Rated Differentials, Universal Models: Fast Slow
Heat(Single Stage/Multi-Stage) . . . . . . 0.6°F 1.2°F
Cool (Single Stage/Multi-Stage) . . . . . 1.2°F 1.7°F
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2°F 1.7°F
Emer. Heat . . . . . . . . . . . . . . . . . . . . . . 1.2°F 1.7°F
Rated Differentials - Single Stage Models: Fast Slow
Heat . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6°F 1.2°F
Cool . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2°F 1.7°F
Operating Ambient . . . . . . . . . . . . . . . . 32 to +105°F (0 to +41°C)
Operating Humidity . . . . . . . . . . . . . . . 90% non-condensing max.
Shipping Temperature Range . . . . . . . -4 to +150°F (-20 to 65°C)
Dimension . . . . . . . . . . . . . . . . . . . . . . 43/16H x 61/2W x 15/8D
