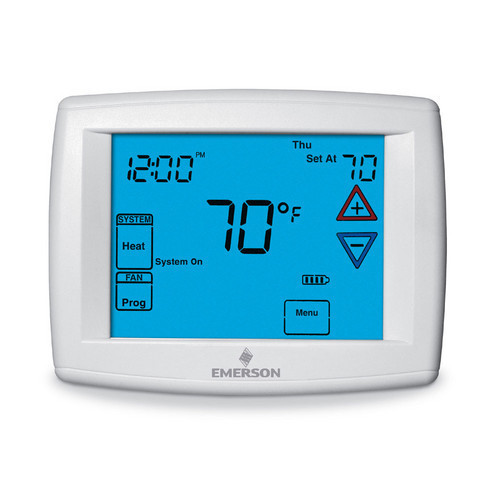

90 SERIES BLUE TOUCHSCREEN thermostat with Humidity Control. White-Rodgers set an industry benchmark with it's line of Big Blue Touchscreen Thermostats. Now, the new Big Blue Humidity Touchscreen offers dehumidification and humidification control, delivering a new level of comfort to your customers.
System Compatibility:
Single Stage gas, oil, electric
Single Stage heat pump
Millivolt Systems
Multi-Stage gas, oil electric
Multi-Stage heat pump
FEATURES:
Large, 12-square-inch display with 10-second backlight
Exclusive Cool Savings feature saves energy during peak A/C demand periods
Dual fuel heat pump logic program requires no outdoor sensor
Remote sensing indoor or outdoor and at the thermostat
Programmable fan with comfort circulator fan option
Enhanced dehumidification fan speed control
Automatic daylight savings option
Flow through humidifier water saving feature -- up to 50%
Single Stage / Multi-Stage / Heat Pump
Universal 4 Heat / 2 Cool
Dehumidification and humidification control
Choice of dual fuel with logic or outdoor sensor (F145-1378)
Battery powered with power stealing assist
TERMINALS: RC, RH, C, W/E, W2, Y, Y2, G, O/B, 6, L, DHM, HM, +, S, -
SPECIFICATIONS:
Dimensions: 4.6"H x 5.9"W x 1.2"D
Thermal Specifications
Setpoint Temperature Range: 45 to 99 F (7 to 32 C)
Rated Differential: Heat 0.6 F; Cool 1.2 F
Operating Ambient Temperature: 32 to 105 F (0 to 41 C)
Operating Humidity Range: 90% non-condensing maximum
Shipping Temperature Range: -40 to 150 F (-40 to 65 C)
