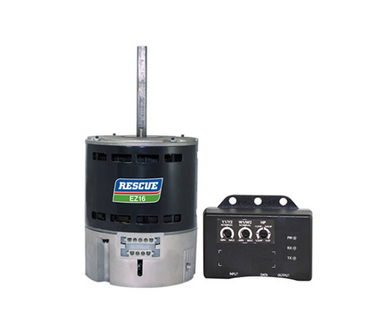

US Motors 5861 Rescue EZ16 3/4-1/3HP 115/208-230V ECM Motor

The new RESCUE EZ16™ motor is an extremely convenient and dependable universal ECM replacement for furnaces and air handlers. It delivers 16-pin variable speed and the performance you expect from the U.S. MOTORS RESCUE line. Not only does it replace thousands of OEM models, but it is also field tunable with EZI (included).

The EZ Interface (EZI) makes things as easy as 1, 2, 3. You just select your voltage, horsepower and adjust the airflow to meet your requirements. EZI provides direct drop-in, adjustable airflow at point of installation, multi-HP trim function to increase flexibility and remote mount for ease of access. It connects the same as OEM and is universally compatible with all 2.0, 2.3, EON motors and Nidec16X4W.

Other features this motor offers include:

• Built-in 6,000 Volt surge protection
• Industry-leading moisture protection
• Available in 1/3, 1/2, 3/4 and 1 HP
• Voltage: 1Ø, 115, 208-230 Vac
• Frame: NEMA®† 48
• Efficiency: Up to 82%
• Mounting: Belly-band
