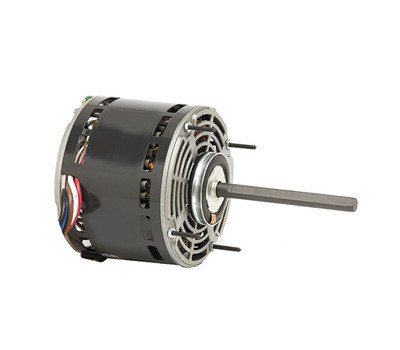

US Motors 1323 Blower Motor 1/2 HP 1075 RPM 115V 3 Speed 48Y
SPECIFICATION
Model_Number: | K055RAC1797011B |
PRODUCT NAME: | .5 HP - OPEN - 1075 |
PHASETYPE: | 1_PERM SPLIT CAP |
MOTOR ENCLOSURE: | OPEN |
HORSEPOWER: | .5 |
KILOWATTS: | 0.4 |
POLES: | 6 |
NUMBER SPEEDS: | 3 |
RPM: | 1075 |
HERTZ: | 60 |
VOLTS PRIMARY: | 115 |
VOLTS : | 115 |
FRAME : | 48 |
SHAFT CODE: | Y |
STATOR DIAMETER: | 5.5 |
STACK: | 1.75 |
MOTOR TYPE: | FHP |
OPPOSITE END BEARING: | SAB |
SHAFT END BEARING: | SAB |
ROTATION: | CCW LEAD END |
RUNCAPMFD: | 15 |
RUNCAPVOLTS: | 370 |
SHIPPING WEIGHT: | 12 |
THERMAL PROTECTION: | AUTOMATIC RESET |
BREAKDOWN TORQUE: | 42.65 |
BREAKDOWN TORQUE UOM: | OZFT |
LOCKED ROTOR TORQUE: | 13.32 |
LOCKED ROTOR TORQUE UOM: | OZFT |
INSULATION CLASS: | B |
LOCKED ROTOR AMPS: | 9.8 |
FULL LOAD AMPS PRIMARY: | 5.0 |
