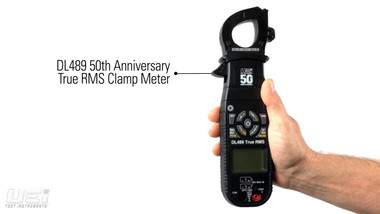

UEi DL489 Special Edition True RMS Digital Clamp-On Meter

UEi DL489 Special Edition True RMS Digital Clamp-On Meter

Key Selling Points
HVAC/R Clamp Meter
The DL489 is a True RMS meter with a dual display and dual K-Type temperature inputs that measure T1, T2 or differential temperature with a wide range from -328? to 2462?F.
Professional Functionality

The DL489 includes the professional functions and ranges of AC/DC amps, AC/DC volts, AC/DC microamps, resistance, capacitance, LRA Inrush, non-contact voltage, and is safety rated to CATII 600V and CATII 1000V to the latest 3rd edition standard.

Special Edition
This 50th Anniversary Edition DL489 commemorates our milestone by placing the most extensive collection of features in a special edition black housing that includes Min/Max, peak hold, data hold, manual ranging mode, dual backlit display, audible voltage indicator, worklight, magnetic mount, input jack safety lock, low battery indication, auto power off, detachable clamp head, over molded grip, silicone test leads and is backed by a 2-year limited warranty.

Features

• True RMS
• 600A AC/DC
• 750V AC/1000V DC
• Resistance 60M?
• Capacitance 2000µF
• AC/DC microAmps 2000µA
• Dual temperature
• -328?to 2462?F
• Frequency 99.99kHz
• Duty cycle
• Diode test
• NCV
• Audible continuity
• LRA inrush
• Peak Hold
• Data hold
• Min/Max
• Manual ranging
• Backlight
• Worklight
• Low battery indicator
• Auto power
• Test lead storage
• Magnetic mount
• Battery compartment latches
• Input jack locks
• Detachable clamp head
• 2-Year limited warranty

Applications

• Motor or line current
• Control voltage or system board voltage checks
• Circuit continuity or specified resistance
• Motor run or start faults
• Ambient or surface temperatures
• Flame safe guard
• Variable speed drives & supply power

Includes

• Test leads w/alligator clips
• K-type thermocouples 2
• Zippered pouch
• Batteries 6 (AAA)
• Manual

Specifications

• TRMS: Y
• Autoranging: Y
• Manual Ranging: Y
• Inrush Current: Y
• Frequency/Duty Cycle: Y
• Diode: Y
• Continuity Beeper: Y
• Data Hold: Y
• Backlit Display: Y
• Display: 6,000;Min./Max.
• Display: Y
• Auto Power Off: Y
• Low Battery Indicator: Y
• Batteries: 6 AAA
• Safety Rating: CATIV 600V/CAT III 1,000V
• AC Volts: 750V
• DC Volts: 1,000V
• AC Amps: 600A
• DC Amps: 600V
• AC/DC µA: 2,000 µA
• Resistance/Continuity: 60M Ohms
• Capacitance: 2,000 µF
• K-Type Thermocouple Receptacle: Y
• Temp.: -328°F to +2462°F
