TRIPSAVER Condenser Motor 1/6 1/3 HP 1075 RPM 2 SPD 208-230

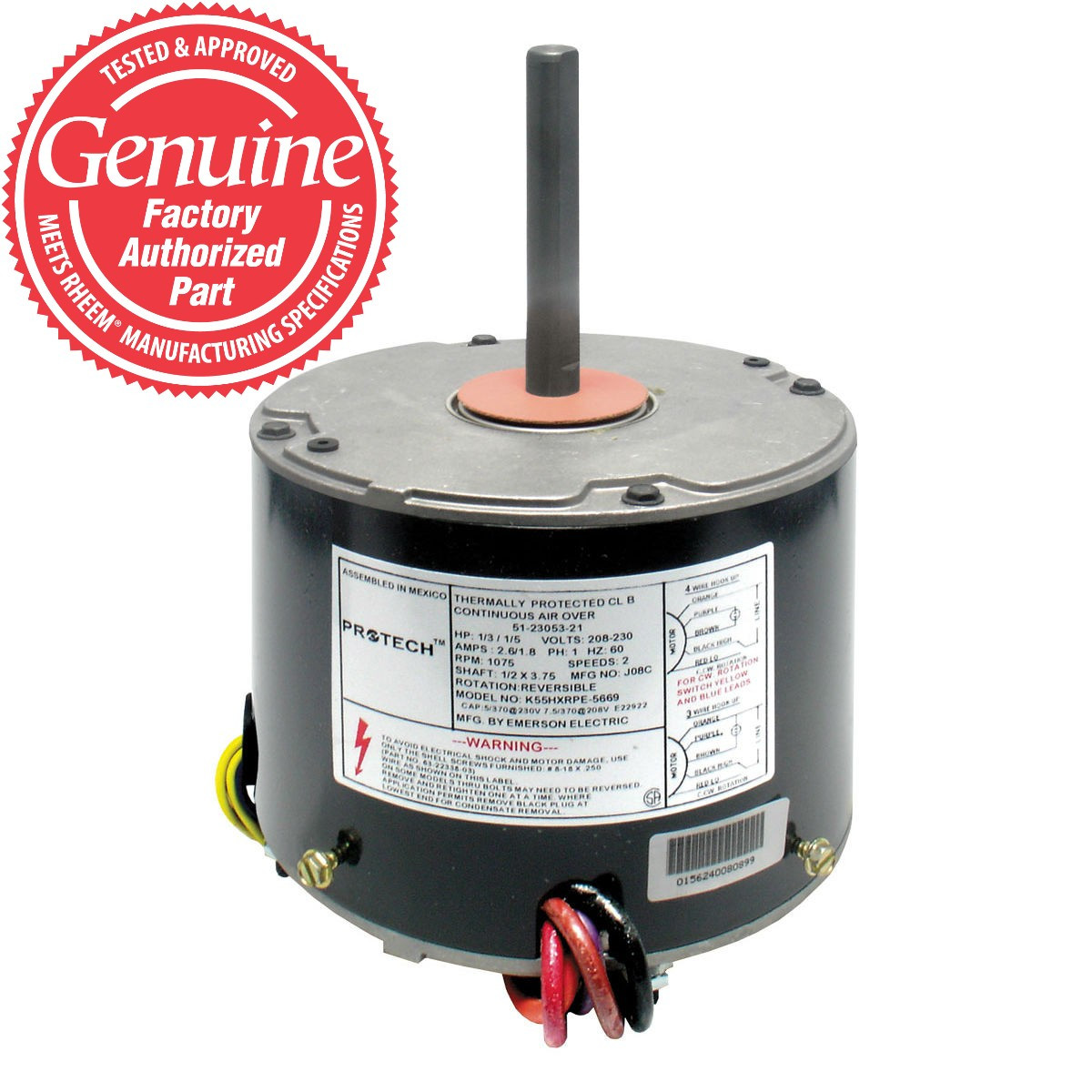

1/5 to 1/3 HP 208-230/1/60 (1075 RPM/2-Speed) Rheem/Protech TripSaver Direct Drive Reversible Condenser Fan Motor 51-23053-21

TRIPSAVER motors are designed with a high degree of versatility; they will cover the vast majority of service applications requiring a direct drive motor. Stock these reliable motors on your service truck and you’ll virtually eliminate those unnecessary trips to get the right motor. A definite must for your service vehicle stocking. Replaces most residential furnace motors; features include:

• Replaces 208-230V motors from 1/3 to 1/5 horsepower
• 2 speed taps / Reversible rotation
• Operates in all positions
• 36 inch leads with easy to use quick-connect flag terminals

* Use a 5/370 or 7.5/370 capacitor depending on HP NOT INCLUDED

Product Technical Data:

HP: 1/6 - 1/3
No. of Speeds: 2
High Speed (RPM): 1075
Low Speed (RPM): 900
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V) NOT INCLUDED: 5/370 (230V) NOT INCLUDED, 7.5/370 (208V) NOT INCLUDED

FLA at 230V (A): 2.60
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 3-1/4
Overall Shaft Length (in.): 3-3/4
Motor Body Length (in.): 4-5/8
Overall Motor Length (in.): 8-3/8
Mounting: Shell-band
Mounting: Thru-bolt
Mounting: Shell-screw
Frame Size: 48
Bearing Type: Sleeve
Application: Condenser
Drive Type: Direct Drive


Replaces:

51-17141-01
51-19065-01
51-18904-01
