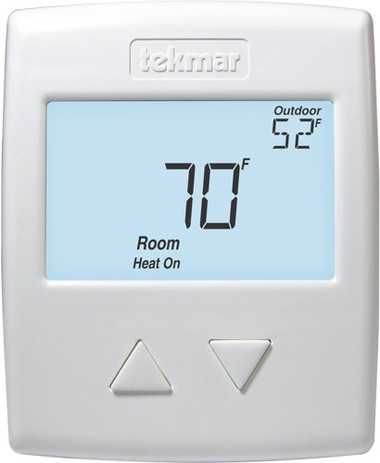

Tekmar 518 Thermostat - One Stage Heat

Image 1

Hover over image to zoom

  • Image 1
SKU:
518 TEK
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

Tekmar 518 Thermostat - One Stage Heat

  • Auto Heating Cycle

  • Auxiliary Sensor Input

  • Backlight

  • Freeze Protection

  • Outdoor & Floor Temperature Display

  • Pulse Width Modulation

Control Microprocessor control. This is not a safety (limit) control
Packaged weight 0.53 lb. (240 g)
Dimensions 3-11/16" H x 3" W x 15/16" D (94 x 76 x 24 mm)
Enclosure White PVC plastic, NEMA type 1
Approvals Meets Class B: ICES & FCC Part 15
Ambient conditions Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% Non-condensing
Power supply 10 to 30 V (ac/dc), 50/60 Hz, 1.8 VA standby, 56 VA max fully loaded, Class 2
Relay 30 V (ac/dc) 2 A, Class 2 circuits
Sensor NTC thermistor, 10¦ @ 77°F (25°C ±0.2°C) ß=3892
-Included None
-Optional tekmar type #: 070, 072, 073, 076, 077, 079, 084
Warranty Limited 3 Year Warranty
