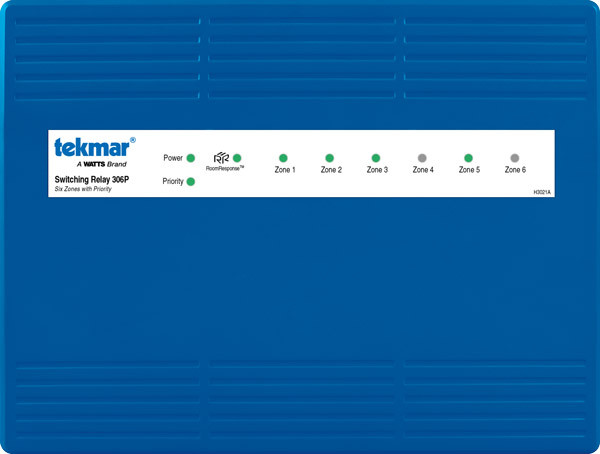

Tekmar 306P Switching Relay
Hover over image to zoom
Product Description
Tekmar 306P Switching Relay
-
Away signal shared between tekmar thermostats
-
CSA approved
-
Compatible with all low voltage thermostats
-
Four ground screws
-
Fuses protect transformers and pumps
-
LED for each zone, priority, end switch and RoomResponse™
-
Post purge
-
Priority override
-
Pump exercising
-
RoomResponse™ signal
-
Top, bottom and back conduit knockouts
-
Two spare fuses included
-
Unlimited zone expansion
-
Zone priority
| Control | Microprocessor control. This is not a safety (limit) control. |
| Packaged weight | 5.0 lb. (2250 g) |
| Dimensions | 8-3/16" H x 10-11/16" W x 2-3/8" D (208 x 271 x 60 mm) |
| Enclosure | Cover: ABS plastic, Base: galvanized steel, NEMA type 1 |
| Approvals | CSA C US |
| Ambient conditions | Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing |
| Power supply | 115 V (ac) ±10%, 60 Hz, 17.3 A |
| Transformer | 40 VA at 24 V (ac), expandable to 80 VA with additional transformer M3069 (sold separately) |
| Control load | 7 VA at 24 V (ac) |
| Fuses | T5A 250 V slow blow, two spare fuses included |
| Pump relays | 115 V (ac), 5 A, 1/3 hp, 17.3 A combined |
| Boiler XX end switch | 24 V (ac), 5 A |
| DHW end switch | 24 V (ac), 5 A |
| Mod boiler output | 0-10 V (dc) 500¦ min load impedance |
| 4-20 mA 1¦ max load impedance | |
| Warranty | Limited 3 Year Warranty |
