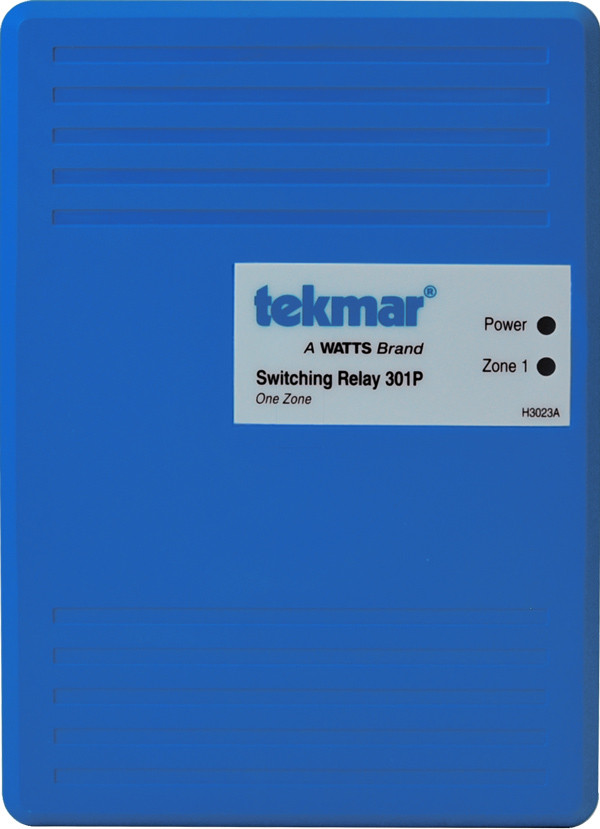

Tekmar 301P Switching Relay
Hover over image to zoom
Product Description
Tekmar 301P Switching Relay
-
20 VA transformer
-
3-year warranty
-
CSA approved
-
Compatible with all low voltage thermostats
-
Fuse protects pump
-
Hinged cover
-
LED for power and zone
-
Post purge
-
Pump exercising
-
Spare fuse included
-
Thermal circuit breaker protects transformer
-
Top, bottom and back conduit knockouts
| Control | Microprocessor control. This is not a safety (limit) control. |
| Packaged weight | 2.5 lb. (1125 g) |
| Dimensions | 6-11/16" H x 4-15/16" W x 2-7/16" D (169 x 123 x 62 mm) |
| Enclosure | Cover: ABS plastic, Base: galvanized steel, NEMA type 1 |
| Approvals | CSA C US |
| Ambient conditions | Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing |
| Power supply | 115 V (ac) ±10%, 60 Hz, 5 A |
| Transformer | 20 VA at 24 V (ac), 16 VA available for thermostat |
| Control load | 7.5 VA at 115 V (ac) |
| Fuse | T5A 250 V slow blow, spare fuse included |
| Pump relay | 230 V (ac), 5 A, 1/3 hp |
| Boiler XX end switch | 24 V (ac), 5 A |
| Warranty | Limited 3 Year Warranty |
