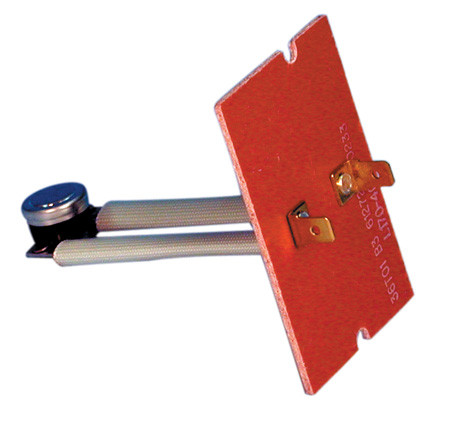

SHL516--PLENUM THERMOSTAT
The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design. Thermostats open when temperature in the furnace plenum area is too high
Shuts down furnace until the temperature cools to an acceptable level
Close Temp. °F: 170; Open Temp. °F: 210;Width: 1.88";Height: 2.94";Length: 3.12";
Features/Benefits
Economical
Direct OEM replacements
UL® recognized
CSA approved
L210-40 SPST
Specifications
Insertion Length: |
3.12" |
Board Height: |
2.94" |
Board Width: |
1.88" |
Close ( °F): |
170 °F |
Open (°F): |
210°F |
Applications
Plenum thermostats
Cross Reference
Replacement Part: HH12ZB210
Manufacturer :Bryant
