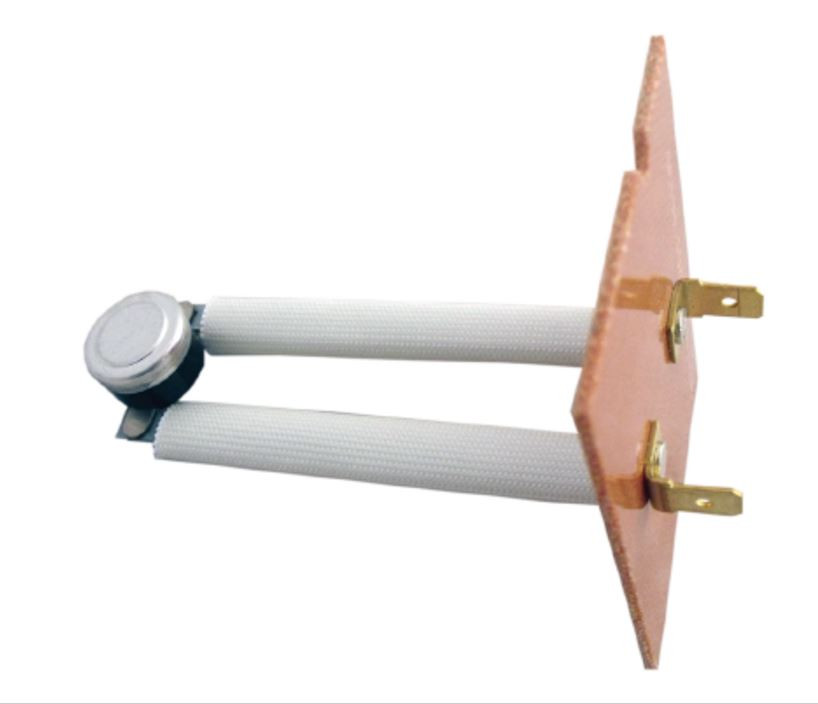

Supco SHL507 Open L140-30 Limit Switch

SHL507--PLENUM THERMOSTAT

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design. Thermostats open when temperature in the furnace plenum area is too high
Shuts down furnace until the temperature cools to an acceptable level
Close Temp. °F: 110; Open Temp. °F: 140;Width: 1.88";Height: 2.8";Length: 3.12";

Features/Benefits

• Economical

• Direct OEM replacements

• UL® recognized

• CSA approved

• L140-30 SPST

Specifications

Applications

Plenum thermostats

Cross Reference

Replacement Part: 025-29041-005

Manufacturer :York

Replacement Part: 87F16

Manufacturer :Goodman

Replacement Part: HH12ZA140

Manufacturer :Bryant
