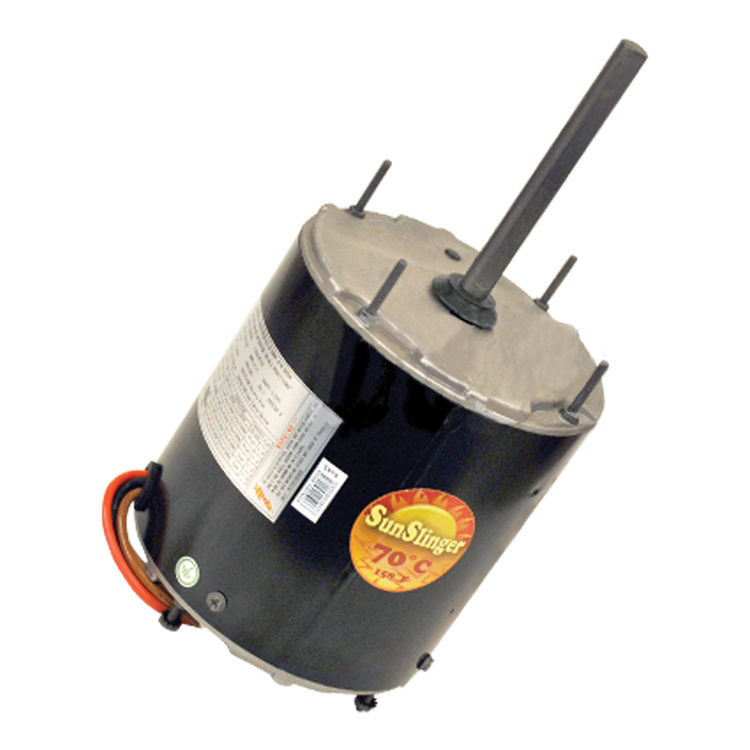

SunSlinger 20465 Condenser Motor 1/6-1/3 MultiHP 208-230V

SunSlinger 20465 Condenser Motor 1/6-1/3 Multi HP 208-230V 2SPD REV 70C CF Replaces Emerson 5462H GE/Genteq 3465HS York Source 1 S1-FHM3465HT

MARS 70°C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock. They are designed to provide reliable operation in a wide range of ambient temperatures. Three 1075 RPM
models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 to 1/3 HP

Features
All angle, ball bearing
• Rheem shell mounting holes with screws installed
• Trane 4.33 bolt circle mounting holes with self tapping screws
• Reversible rotation
• Thru bolt or band mounting
• Water slinger on shaft
• Extra set of nuts on mounting studs

Specifications: • Class “B” insulation
• Single phase, 60 Hertz
• 70°C/158°F
• 36 inch leads
• Thermal overload protected
• Fan duty, continuous, air over
• Totally enclosed (20458 & 20459 ONLY)
• Short shell length
• Just ONE capacitor rating per motor
• Quick & Simple 2 wire installation


Motor Type PSC
Enclosure TEAO
H.P. (Max.) 1/3
Voltage 208-230
Multi-Rated H.P. 1/6-1/3
Speeds 2
Hz 60
Rotation REV
RPM Range 1075
NEMA Frame
Size 48
Phase Single
Standards CUL
FLA 2.5
Mount All Angle
Bearing Ball
Shaft Length Inches 7
Shaft Dia Inches 1/2
Thermal Protection Auto
Ambient Deg C 70
Ins. Class Class B
Capacitor Included No
Capacitor Rating 7.5/5/370
