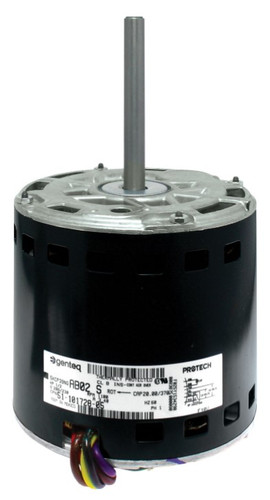

Rheem Ruud Weather King Furnace Blower Motor 1/2 HP 208-230

HP:1/2No. of Speeds:2High Speed
(RPM):1075Input Voltage
(V):208Input Voltage
(V):230
No. of Phases:1Frequency
(Hz):60Rotation Direction
(OSE):CCWRun Capacitor
(uF/V):20/370FLA at 230V
(A):3.40LRA at 230V
(A):7.90Shaft Diameter
(in.):1/2Motor Body Diameter (in.):5-5/8Keyed/Flat Shaft Length (in.):2Overall Shaft Length (in.):4-1/4Motor Body Length (in.):5-1/4Overall Motor Length (in.):9-1/2Mounting:Shell-band
FrameSize:48Bearing Type:SleeveApplication:BlowerDrive Type:Direct Drive

This part (or a part replaced by this part) is specified on the following parts lists:
