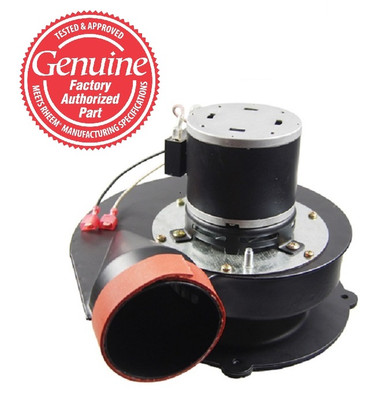

Rheem Ruud 70-101087-81 Inducer Combustion Motor Kit

Specs:

H.P.	1/50
Speeds	1
Amps	0.60
Rotation	CCWLE
RPM	3000
Bearings	Ball
Enclosure	Open
Motor Type	PSC
Frame	3.3
Overload	Automatic
Phase	1
Hertz	60
Includes	Gasket
Class	B
Voltage	115

Replaces:

Rheem	70-101087-81
Rheem	7021-11559

Packard   66781

Note: There are many furnaces that may use this Inducer OR (70-101087-81). The difference is the 70-24157-03 has a port to be able to use this Inducer for Standing Pilot systems whereas the 70-101087-81 does not have this port therefore it can not be used for standing pilot systems. So if you have Hot Surface or Spark Ignition you can order the 70-10187-81 and save some money. Prior to a date code of 6/1/2002 use the 70-24157-03 shown on the next description below. After a date code of 6/1/2002 use 70-101087-81 in the description above. To figure out your date code - Your serial number will look something like this example CB5D302 F099903346 Look at the F in the serial number. The next (2) digits are the week of production and the next 2 digits is the year it was made. So in this example the furnace was made the 9th week of 1999.

You may contact us for help in choosing the correct part.
