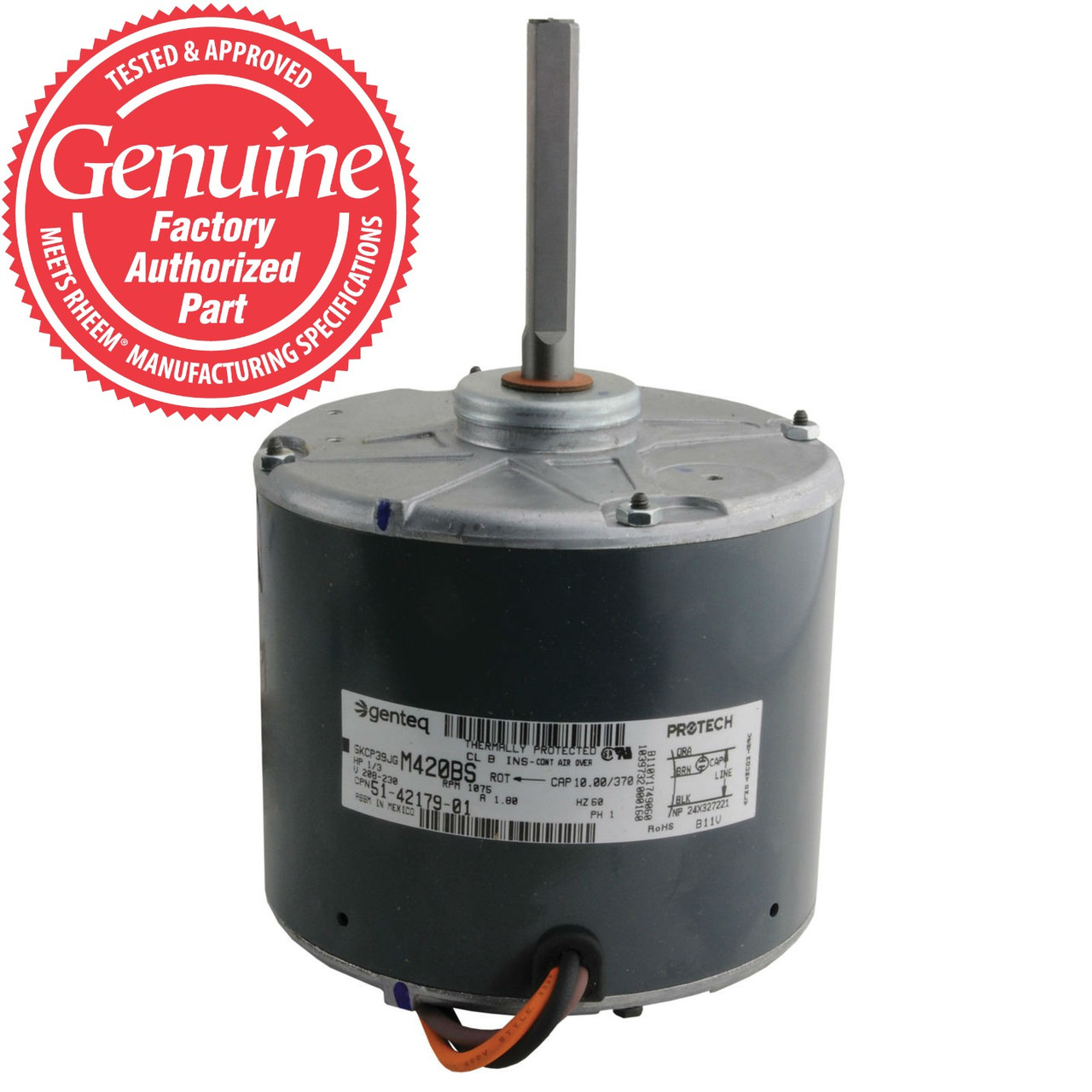

Rheem Ruud 51-42179-01 Condenser Fan Motor

1/3 HP 208-230/1/60 (1075 RPM/1-Speed) Rheem Direct Drive CCW Condenser Motor 51-42179-01

This motor is an OEM replacement for Rheem, Ruud, and WeatherKing models; additionally it may be suitable for aftermarket retrofit in many other applications.


Product Technical Data:
HP: 1/3
No. of Speeds: 1
High Speed (RPM): 1075
Input Voltage (V): 208
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 60
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370
FLA at 230V (A): 1.80
LRA at 230V (A): 4.00
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 2-3/4
Overall Shaft Length (in.): 3-11/16
Motor Body Length (in.): 4-3/4
Overall Motor Length (in.): 8-7/16
Mounting: Shell-band
Mounting: Shell-screw
Frame Size: 48
Bearing Type: Sleeve
Application: Condenser
Drive Type: Direct Drive

Part Used in the Following Models:

RPWC075P, RPWC100C, RPWC100P, RAWD065C, RAWD065P, RAWD066C, RAWD066P, RAWD075C, RAWD075P, RAWD076C, RAWD076P, RAWD065C, RAWD065P, RAWD100C, RAWD100P, RAWD125C, RAWD125P, RAWD150C, RAWD150P, RAWD151C/P, RAWD200C. RAWD200P, RAWE090P, RJKA-A036, 042, 048, 060, J, RKKA-A085C/P, RKKA-A072C/P, RKKA-073C/P, RKMA-A060 J/C, RKMA-A072 C, RKMA-A060 J/C, RKMA-A072 C, UPWC075P, UPWC100C/P, UAWD065C/P, UAWD066C/P, UAWD075C/P, UAWD076C/P, UAWD100C/P, UAWD125C/P, UAWD150C/P, UAWD151C/P, UAWD200C/P, UAWE090P, UKKA0A085C/P, UKKA-A072C/P, UKKA-A073C/P, UKMA-A060 J/C, UKMA-A072 C, UKMA-A060 J/C, UKMA-A072 C
