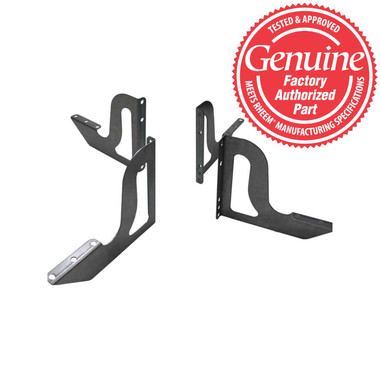

Rheem Protech AE-61698-82 Motor Mounting Kit Shell Screw

Image 1

Hover over image to zoom

  • Image 1
SKU:
AE6169882 RHE
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

Rheem Protech AE-61698-82 Motor Mounting Kit Shell Screw -Rheem/Ruud/Protech - A complete line of OEM and factory replacement parts for your furnace; air conditoner; water heater; air handler; boiler; rooftop unit and more.

NOTE: If new fasteners are required to attach motor mounting brackets to the motor, order screw 63-24368-01 NOT INCLUDED (size #8-18) which is the fastener used in the factory for the same application. Two screws required per bracket.

Technical Data

Motor Frame Size:48
Nominal Motor Diameter (in):5-5/8
Nominal Blower Mounting Bolt Circle Diameter (in.):14-13/16
Blower Mounting Bolt Circle Diameters (in.):12-13/16, 14-13/16, 16-13/16
Number of Arms:4
Shell Screw Hole Spacing - From Bracket End / Motor Butt End (in.):1/4, 3/4, 1-1/4, 3-5/16, 4-5/16


Where Used

Model:Part:Page:
RGDGAE-61612-01Field Test Parts 07 (2)
RGLGAE-61698-01Blower Group
RGSAAE-61698-01Blower Group, Heat Exchanger-Burner Group
RGVGAE-61698-01Blower Group
SGDGAE-61698-02Blower Group
RGDGAE-61698-02Blower Group
RGDJAE-61698-02Blower Group
RGLHAE-61698-02Blower Group
RGLJAE-61698-02Blower Group
RGLKAE-61698-02Blower Group
RGLNAE-61698-02Blower Group
RGLQAE-61698-02Blower Group
RGPHAE-61698-02Blower Group
RGPJAE-61698-02Blower Group
RGPKAE-61698-02Blower Group
RGPNAE-61698-02Electrical Group, Blower Group
RGPPAE-61698-02Electrical Group, Blower Group
RGPQAE-61698-02Electrical Group, Blower Group
RGRAAE-61698-02Electrical Group, Blower Group
RGRBAE-61698-02Electrical Group, Blower Group
RGRCAE-61698-02Electrical Group, Blower Group
RGRJAE-61698-02Blower Group
RGRKAE-61698-02Blower Group
RGRLAE-61698-02Electrical Group, Blower Group
RGSAAE-61698-02Blower Group, Heat Exchanger-Burner Group
RGTAAE-61698-02Electrical Group, Blower Group
RGTCAE-61698-02Electrical Group, Blower Group
RGTJAE-61698-02Blower Group
RGTKAE-61698-02Electrical Group, Blower Group
RGVHAE-61698-02Blower Group
RGVJAE-61698-02Blower Group
80LJAE-61698-02Blower Group
80LSAE-61698-02Blower Group
80PJAE-61698-02Blower Group
80PSAE-61698-02Blower Group
90RJAE-61698-02Blower Group
90RSAE-61698-02Blower Group
90RTAE-61698-02Blower Group, Heat Exchanger-Burner Group
90TJAE-61698-02Blower Group
90TSAE-61698-02Blower Group
GF802DAE-61698-02Blower Group
GF802UAE-61698-02Electrical Group, Blower Group
GF901DAE-61698-02Blower Group
GF901UAE-61698-02Blower Group
GF902DAE-61698-02Electrical Group, Blower Group
GF902U-BSAE-61698-02Electrical Group, Blower Group
GF902U-ASAE-61698-02Electrical Group, Blower Group
GF951D-AAE-61698-02Electrical Group, Blower Group
GF951U-AAE-61698-02Electrical Group, Blower Group
HAHAE-61698-02Electrical Group, Blower Group
R801P-ZSAAE-61698-02Blower Group
R801S-ZSAAE-61698-02Blower Group (1)
R801S-ZSAAE-61698-02Blower Group (2)
R802P-ZSAAE-61698-02Blower Group
RGLSAE-61698-02Blower Group
RGPSAE-61698-02Blower Group
RGRSAE-61698-02Blower Group
RGRTAE-61698-02Electrical Group, Blower Group, Heat Exchanger-Burner Group
RGTSAE-61698-02Blower Group
RHWBAE-61698-02Blower Group
S801P-ZSAAE-61698-02Blower Group
S801S-ZSBAE-61698-02Blower Group (1)
S801S-ZSBAE-61698-02Blower Group (2)
S802P-ZSAAE-61698-02Blower Group
SGPNAE-61698-02Electrical Group, Blower Group


Replacement History
Replaces:

10-61698-02
AE-61612-01
AE-61698-02
AE-61698-01
