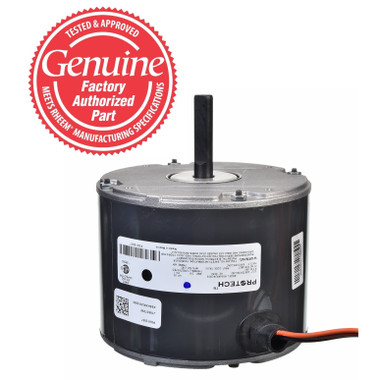

Rheem PD512807 Condenser Fan Motor 1/6 Hp 208-230/1/60 (825 Rpm/1 Speed)

Rheem PD512807 Condenser Motor - 1/6 hp 208-230/1/60 (825 rpm/1 speed)

Technical Data »

• HP: 1/6
• No. of Speeds: 1
• High Speed (RPM): 825
• Input Voltage (V): 208
• Input Voltage (V): 220
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): CCW
• Run Capacitor (uF/V): 5/370
• FLA at 208V (A): 0.6
• LRA at 208V (A): 1.5
• FLA at 220V (A): 0.6
• LRA at 220V (A): 1.5
• FLA at 230V (A): 0.6
• LRA at 230V (A): 1.5
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 1-1/2
• Overall Shaft Length (in.): 2
• Motor Body Length (in.): 4-1/2
• Overall Motor Length (in.): 6-1/2
• Mounting: Shell-band
• Mounting: End-boss
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Condenser
• Drive Type: Direct Drive

Where Used »

• SAGL, RAND, RANL, RAPL, SPGL, RPNE, RPNL, RPPC, RPPL, 13ACA, 13ACN, 13AJA, 13AJL, 13AJM, 13AJN, 13PJA, 13PJL, 13PJP, 14AJA, 14AJL, 14AJM, 14PJL, 14PJM, 15PJL, 16AJL, RA14, RA16, RP14, RA14, RA16, RP13

Replacement History »

• 51-101774-02
• 51-101774-02
• 51-102500-03
• PD512807
• 51-101774-02-BULK
• 51-101774-02-BULK
• 51-101774-02
• 51-101774-52
• 51-102008-02
• 51-102008-02
• 51-101774-02
• 51-101774-02
• 51-101774-02-BULK
• 51-101774-02
• 51-101774-02-BULK
