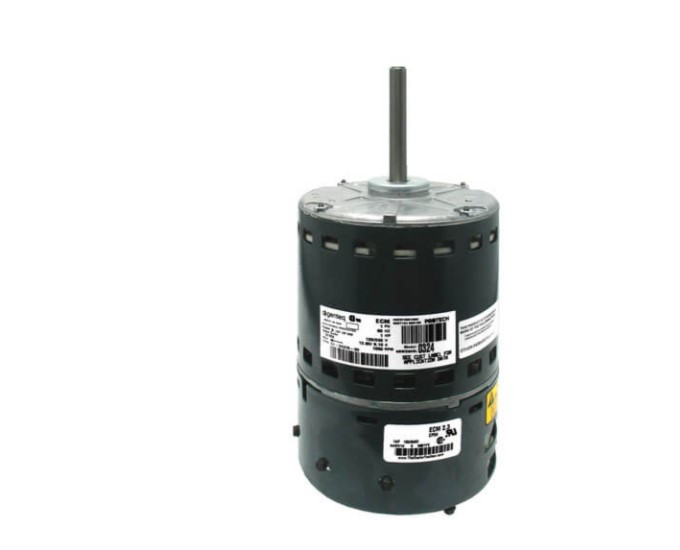

Rheem 51-104304-00 Motor 1/2 Hp (ECM) Eon 5.0

Image 1

Hover over image to zoom

  • Image 1
SKU:
5110430400 RHE
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

The ECM Eon Blower Motor is commonly used in applications in residential HVAC furnaces and air handlers, commercial variable air volume systems, and fan filter units. Eon is a lighter, more compact variable speed ECM that is backward compatible with the existing ECM 2.3 motor and fits easily into existing systems.

  • Lighter, more compact for easier installation
  • ECM Toolbox based programming software
  • BlakBox enabled
  • OEM genuine factory authorized part
Motor Type: ECM (Eon)
HP: 1/2
No. of Speeds: Variable
Input Voltage (V): 120
Input Voltage (V): 230
No. of Phases: 1
Frequency (Hz): 50
Frequency (Hz): 60
Shaft Diameter (in.): 1/2
Motor Body Diameter (in.): 5-5/8
Keyed/Flat Shaft Length (in.): 3-13/16
Overall Shaft Length (in.): 4-1/4
Motor Body Length (in.): 6
Overall Motor Length (in.): 10-11/32
Mounting: Shell-band
Frame Size: 48
Bearing Type: Ball
Application: Blower
Drive Type: Direct Drive
Replaces:
51-24259-80
51-24259-00
51-24374-00
