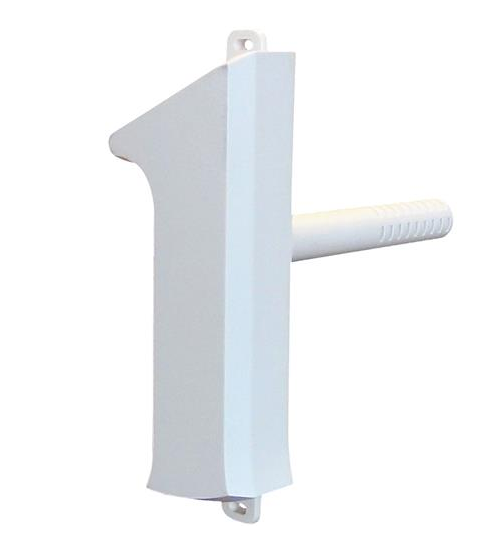

Features:
Measures discharge air temperature for safe and efficient zone control (or zoning)
Set high and low limits in the duct for zoning applications to protect equipment
Requires Z955W
Mounts in the duct above the heat exchanger
24VAC hardwire
Specs:
The display range of temperature | 32ËšF to 99ËšF (0ËšC to 37ËšC) |
The control temperature range | 44ËšF to 90ËšF (7ËšC to 32ËšC) |
Display accuracy | ± 1 °F |
Power source | Battery power from 2 AA Alkaline Energizer batteries |
Operating ambient | 32° to +105° (O° to + 41°C) |
Operating humidity | 90% non-condensing maximum |
Dimensions of thermostat | 4.7"W x 4.4"H x 1.1"D |
Frequency | 916 MHz |
Sending Data | Every 5 minutes |
Reading Temperature | Every 60 seconds |
