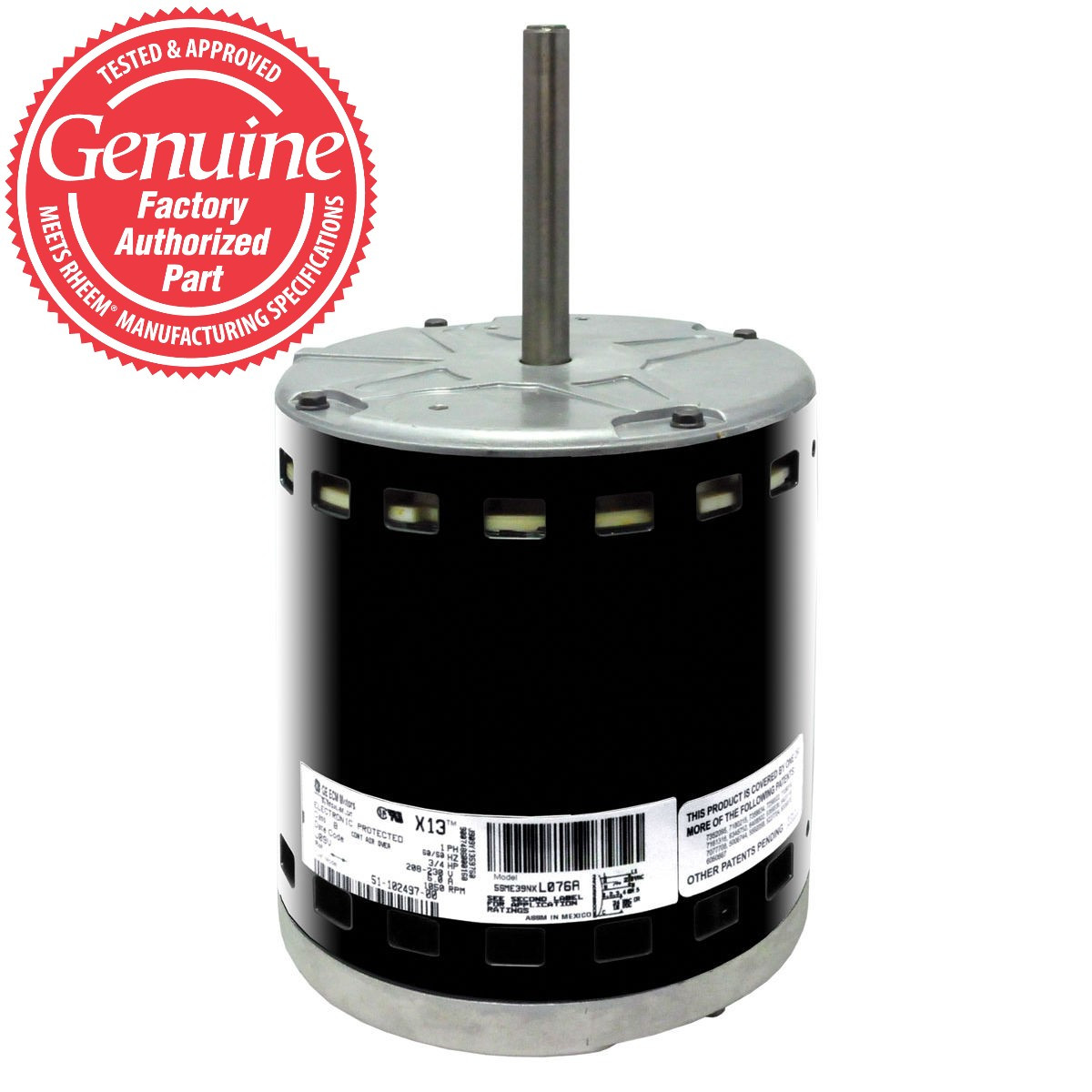

Motor X-13 Endura Pro w/Resilient Rotor 230V 3/4 HP

Rheem/Protech 51-102497-00, X-13 Programmable Motor

NOTE:

Programmed motors are NOT interchangeable. Please order the exact part number specified for the unit.

This motor has a resilient rotor design which is designed to provide quieter operation compared to the 51-101920-xx series.

Endura Pro/X-13 motor with integrated solid state control (230V, 3/4 HP)

For troubleshooting information, see the "ECM and Endura Pro/X-13 Service Guide" available under the "Documents" menu. Unlike ECM motors, a special motor tester is not required to diagnose Endura Pro/X-13 motors.

Part number VZ-7 is a diagnostic tool which may be used to test these motors.

This is a BLANK unprogrammed motor which will not operate unless it is programmed. This motor can be field programmed using kit PD510011. See the parts list for the model under repair for the correct programmed part number.

Specifications

• Motor Type: X-13
• HP: 3/4
• Speeds: Variable
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Frequency (Hz): 50
• Frequency (Hz): 60
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3-1/2
• Overall Shaft Length (in.): 3-15/16
• Motor Body Length (in.): 6-1/2
• Overall Motor Length (in.): 10-7/16
• Mounting: Shell-band
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive

This is a BLANK unprogrammed motor which will not operate unless it is programmed. This motor can be field programmed using kit PD510011 NOT INCLUDED.

Replacement History

Replaces:

51-101920-00
