Mars H10 Pro Refrigerant Leak Detector

MARS H-10 Pro Universal Refrigerant Leak Detector Made By Bacharach

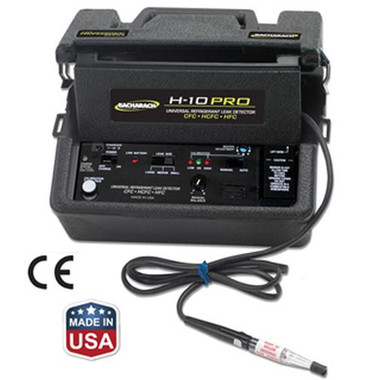

The MARS H-10 Pro combines and enhances all the features of the previous H-10 Series models into one full featured unit. The H-10 Pro Refrigerant Leak Detector continues to be the universal standard for checking halogen-based refrigerant leaks in residential and commercial applications. With automatic auto zero balance control it’s unique sensor calibration system will pinpoint small, medium and large leaks. The instrument uses a tried-and-true positive ion emission heated diode with audible and visual leak rate indicators. It is the most sensitive and accurate leak detector to detect all CFC, HFC, and HCFC non-flammable refrigerants. The unit is mounted in a durable carry case which houses the 4.5 foot probe with built in filter, carrying strap, wall adapter and operating instructions.

Features:

Enhanced sensitivity detects all halogen-based, non-flammable CFC, HFC and HCFC refrigerants including: R12, R22, R134a, R404a, R410a, R502, R507 and many others

Improved sensor responsiveness with ultra-sensitive detection

Dual power sources include rechargeable battery or external DC powered (wall adapter included)

Selectable sensitivity to pinpoint small, medium or large leaks

Unique visual sensor calibration system (with included reference leak bottle)

Rugged enclosure with shoulder strap included

Manual or automatic zero modes

Headphone port allows for optional headset use in high-noise environments

Benefits

• Great for identifying halogen-based refrigerant leaks in both residential and commercial applications

• Senses all CFC, HCFC, and HFC refrigerants and blends, such as R12, R22, R134a, R404a, R410a, R502, and R507 among others

• Selectable sensitivity to pinpoint small, medium or large leaks

• Sensitivity as low as 0.006 oz/yr

• Headphone port allows for headset use in noisy environments

• Unique visual sensor calibration system

• Manual or automatic zero modes

• Includes both wall adapter and battery power options for greater convenience and portability

• Made in USA

• CE approval

Sensor Type Positive Ion Emission Heated Diode

Alarm Visible LED at probe tip and audible buzzer

Response Time 1 second

Power Supply 12 VDC rechargeable battery; 100-240 VAC wall adap

Probe Length 4.5ft (1.37m)

Sensitivity 0.006 oz/yr (stationary); 0.1 oz/yr (moving probe)

Operating Temperature 32 to 104°F (0 to 40°C)

NOTE: sensors are consumed in normal operation. It is good practice to have a spare sensor available at all times.
