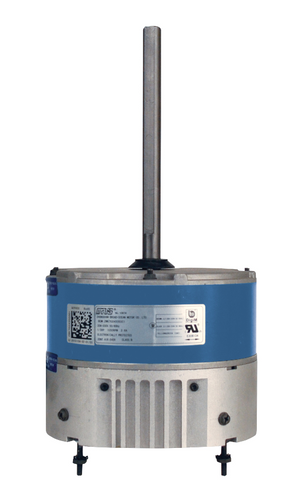

Mars 10874 AZURE 1/8-1/3 HP COND FAN MTR

Image 1

Hover over image to zoom

  • Image 1
SKU:
10874
Condition:
New
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

AZURE 1/8-1/3 HP COND FAN MTR


Motor Type
ECM
Enclosure
CAO
H.P. (Max.)
1/3
Voltage
230
Multi-Rated H.P.
1/8 - 1/3
Speeds
1
Hz
50/60
Rotation
CW/CCW
RPM Range
825/1075
NEMA Frame Size
48
Phase
Single
Standards
UR
Mount
Stud
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
0.5
Thermal Protection
Electronical Protection
Ambient Deg C
-32C-+55C
NOTE
Shaft down only mounting. Remove the drain plugs a
Ins. Class
B
Capacitor Included
No
Brand
MARS
Pack Qty
1
Case Qty
1
Pallet Qty
80
Length
14.90 in.
Width
6.90 in.
Height
8.60 in.
Weight
9.8000 lbs
Harmonized Tariff Code
8501403040
UPC
685744108740
Country of Origin Code
VN
Country of Origin Name
Vietnam
