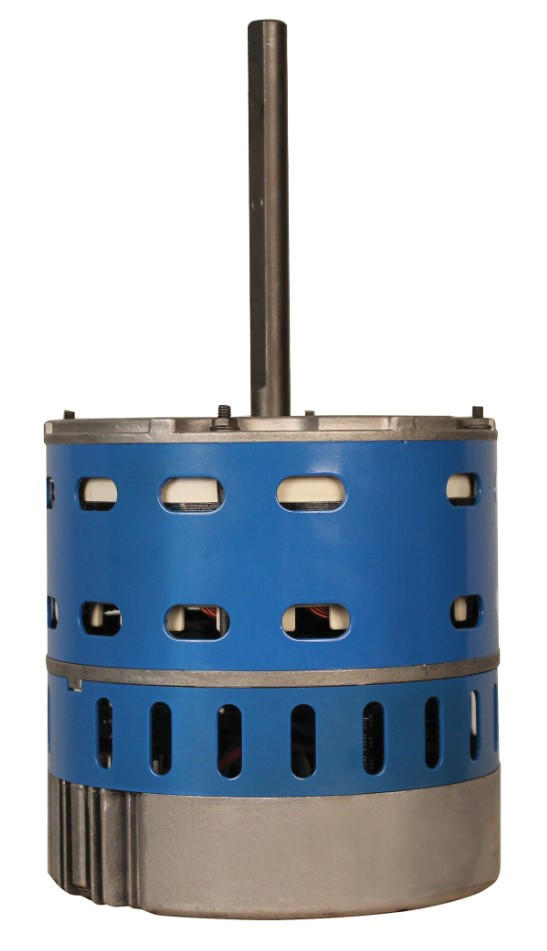

Mars 10857 AZURE ECM 1/2 - 1HP Blower Motor 120/240V

Image 1

Hover over image to zoom

  • Image 1
SKU:
10857
Condition:
New
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

Azure VS 1/2 to 1HP D/D


Motor Type ECM Enclosure OAO H.P. (Max.) 1 Voltage 120/240 Multi-Rated H.P. 1/2-1 Speeds 5 Hz 50/60 Rotation REV+FWD RPM Range 1075 Variable NEMA Frame Size 48 Phase Single Standards CUL FLA 11.5/7.0 Mount Belly Band Bearing Ball Shaft Length Inches 4.94 Shaft Dia Inches 1/2 Thermal Protection REDUNDANT Electronic Control CIRCUITS Ambient Deg C 55 NOTE Bluetooth Control - AZURE ECM App Ins. Class B Capacitor Included No Replaces Variable Speed ECM and Constant Torque
Motor Type
ECM
Enclosure
OAO
H.P. (Max.)
1
Voltage
120/240
Multi-Rated H.P.
1/2-1
Speeds
5
Hz
50/60
Rotation
REV+FWD
RPM Range
1075 Variable
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
11.5/7.0
Mount
Belly Band
Bearing
Ball
Shaft Length Inches
4.94
Shaft Dia Inches
1/2
Thermal Protection
REDUNDANT Electronic Control CIRCUITS
Ambient Deg C
55
NOTE
Bluetooth Control - AZURE ECM App
Ins. Class
B
Capacitor Included
No
Replaces
Variable Speed ECM and Constant Torque
