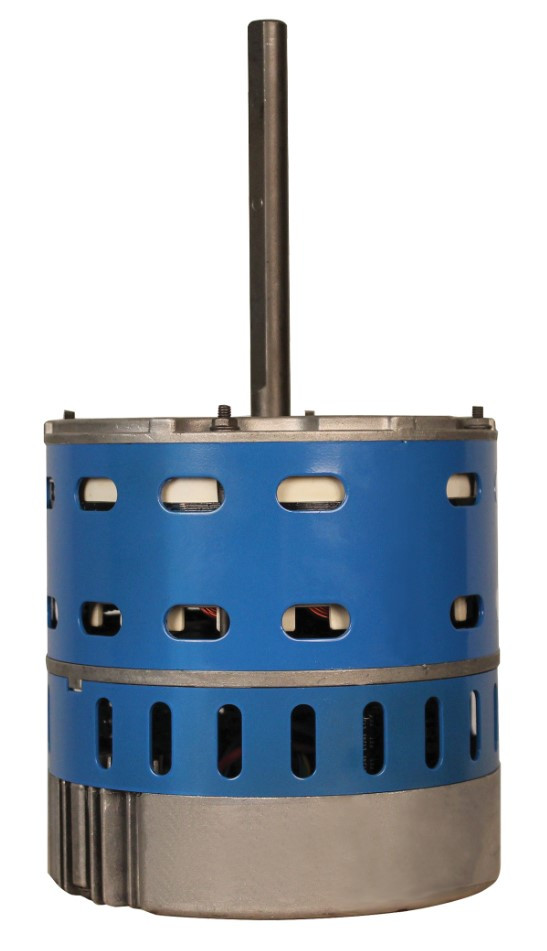

Mars 10856 Azure Variable Speed Universal Blower Motor 1/4 to 1/2 HP D/D

Image 1

Hover over image to zoom

  • Image 1
SKU:
10856

 Product Description

Azure VS 1/4 to 1/2 HP D/D


Motor Type
ECM
Enclosure
OAO
H.P. (Max.)
1/2
Voltage
120/240
Multi-Rated H.P.
1/4-1/2
Speeds
5
Hz
50/60
Rotation
REV+FWD
RPM Range
1075 Variable
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
6.4/3.8
Mount
Belly Band
Bearing
Ball
Shaft Length Inches
4.94
Shaft Dia Inches
1/2
Thermal Protection
REDUNDANT Electronic Control CIRCUITS
Ambient Deg C
55
NOTE
Bluetooth Control - AZURE ECM App
Ins. Class
B
Capacitor Included
No
Replaces
Variable Speed ECM and Constant Torque
Brand
MARS
Length
14.90 in.
Width
7.50 in.
Height
7.10 in.
Weight
10.9350 lbs
Harmonized Tariff Code
8501403040
UPC
685744108566
Country of Origin Code
VN
Country of Origin Name
Vietnam
