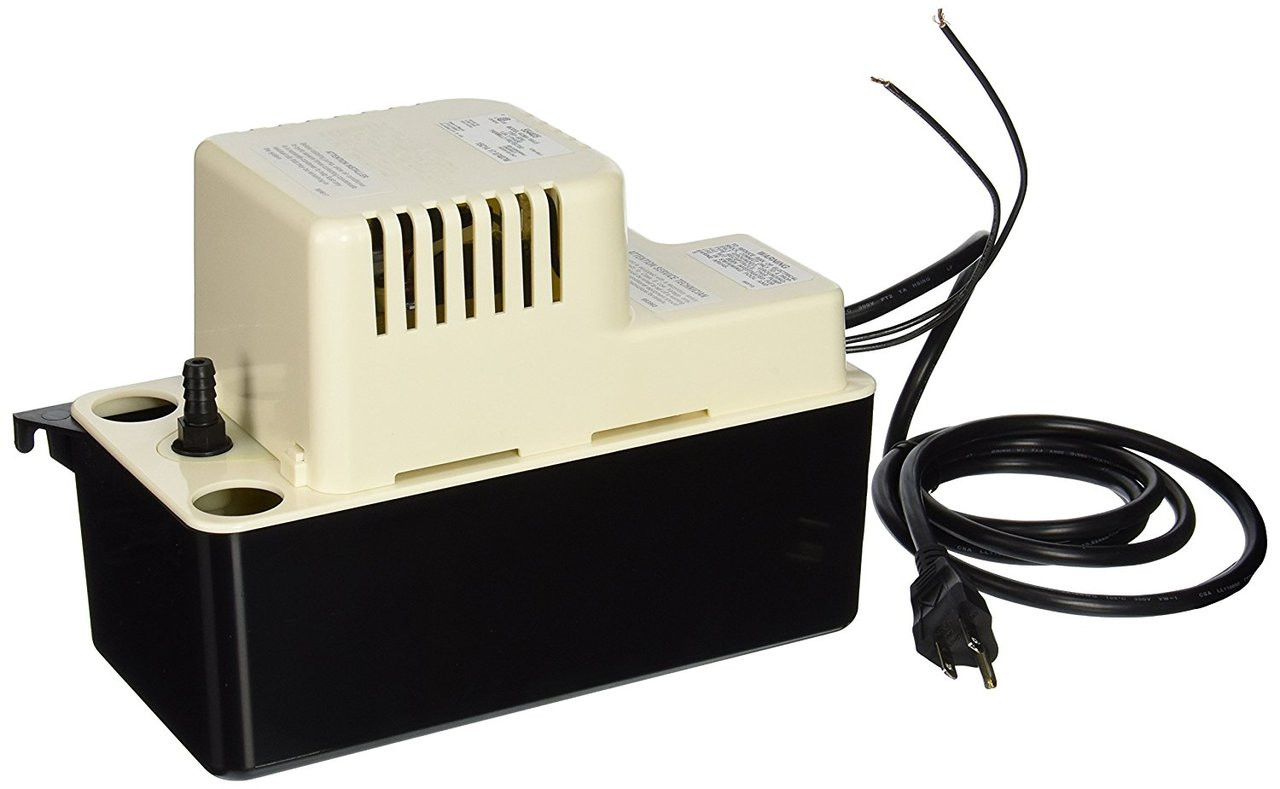

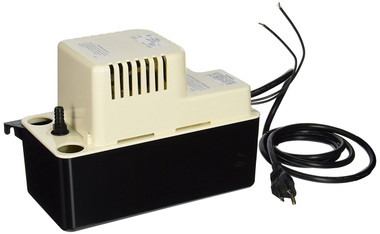

Little Giant 554405 VCMA-15ULS Condensate Pump 115V 60HZ 6FT

Little Giant 554405 VCMA-15ULS Condensate Removal Pump 115V 60HZ 6FT with Safety Switch

The VCMA-15ULS has 1/2 gal. tank capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

• 1/50 HP high performance motor
• ABS tank, motor cover and volute
• Stainless steel pump shaft
• Snap-action pump switch
• Removable 3/8 in. barbed check valve
• Safety switch included

Little Giant VCMA-20 Series Applications
Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment

Construction

• Motor — 1/30 hp
• Discharge — 3/8" OD barbed
• Housing/tank cover — ABS
• Volute — ABS
• Tank — ABS
• Impeller — Glass filled polypropylene
• Check valve — Acetal

Features

• 1/2 gallon collection tank
• Vertical centrifugal pump design
• Automatic start and stop operation
• 3/8” O.D. barbed discharge adapter with built-in
• Three 1-1/8” diameter inlet openings
• Thermally protected, fan cooled motor
• Built-in wall mount tabs on tank
• Removable pump float locking tab for safety during
• Maximum water temperature: 140 ºF
• 6 ft, 3-conductor cable with grounded 3-prong plug

Your Little Giant product is warranted against defective materials and workmanship for a period of 12 months from date of purchase by the user. Any product that should fail for either of the above two reasons and is still within the warranty period, will be repaired or replaced if returned prepaid to the Little Giant Factory. All defective products returned under warranty will be fully inspected to determine "cause of failure" before any warranty is approved. Little Giant will honor the warranty within the warranty time period specified on satisfactory written proof of purchase.
