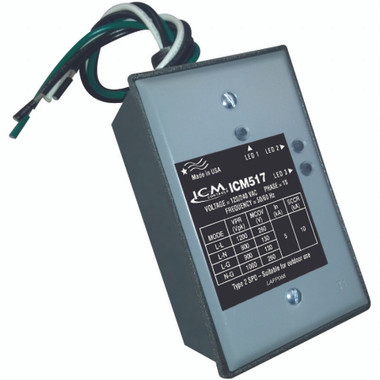

ICM517 Single Phase Surge Protective Device

Image 1

Hover over image to zoom

  • Image 1
SKU:
ICM517
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

DETAILS:

Single-Phase Surge Protective Device with a metal, NEMA 3R Rated enclosure. Suitable for use on a circuit capable of delivering not more than 10,000 rms symmetrical amps, 240 volts max, when protected by a circuit breaker rated 15 to 60 amps maximum and 120 volts minimum.
  • Single-Phase Surge Protective Device
  • UL Listed, Type 2 Device
  • 100,000 amp 1,020 joules of protection
  • Metal, NEMA 3R Rated Enclosure
  • Rugged, Reliable
  • Easy Indoor/Outdoor Installation
  • LED Status Indicators
  • Backed by a Limited Lifetime Protection Warranty

WEIGHT/DIMENSIONS:

  • Weight: 0.55
  • Height: 2.16
  • Width: 2.78
  • Length: 5


SPECIFICATIONS:

Service Voltage: 120/240 volt, single phase
Maximum Surge Current: 100,000 Amps
Maximum Energy Dissipation: 1,020 Joules
Installation Point:
– Electrical Panel
– Service Disconnect
AC Protection Modes: L-L, L-N, L-G, N-G
Conduit Connection: 3/4″
Dimensions: 5″L x 2.78″W x 2.16″D
Weight: 0.55 lbs.

REPLACES:

SUPCO: SCM Plus, SCM150

Intermatic: AG3000
