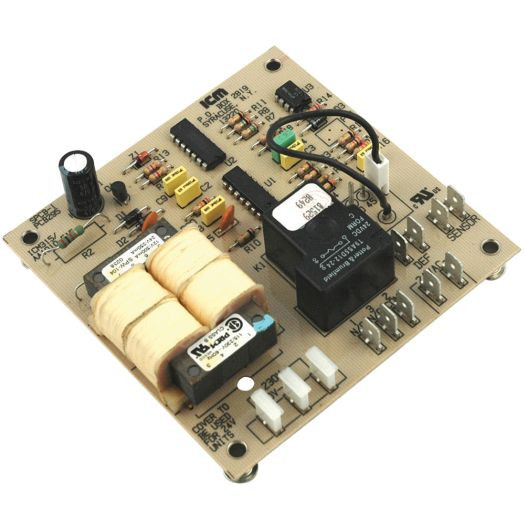

ICM315 Ranco Heat Pump Defrost Timer
Specifications
Input
Voltage: 24, 120 or 240 Vac
Frequency: 50/60 Hz
Power Consumption: 1 watt max.
Output
Type: Relay
N.O.: 20 amps, N.C.: 10 amps @ 240 VAC
Time Delays
Defrost Time: Fixed 10 minutes + 5%
Interval Time Between Defrosts: Pin-selectable 30/60/90 minutes
Test Time: Short across test terminals reduces test time 256x
Power on Reset Time: 500ms
