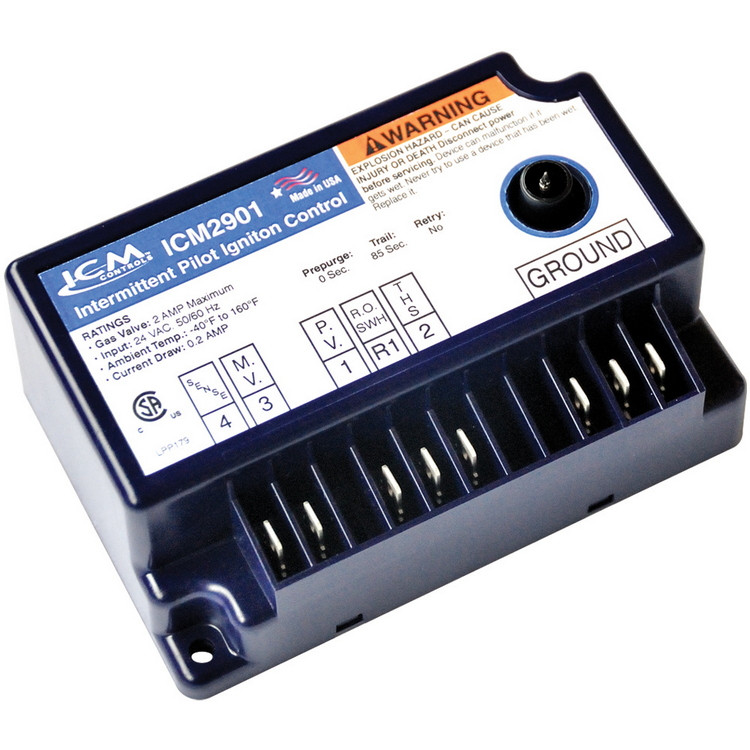

ICM2901 Spark Gas Ignition Control Replaces G770RJA-1

The ICM2901 Spark Gas Ignition Control Replaces G770RJA-1

Features:

• Intermittent pilot gas ignition control
• For use with intermittent pilot boilers, furnaces and other heating appliances
• Microprocessor-based precision
• Monitors timing, trial for ignition, rollout switch, flame sensing and lockout
• Remote flame sensing
• 100% lockout safety feature
• Works with both Natural and LP gas systems

Specifications:

Control Voltage: Line 24V (18-30 VAC), 50/60Hz

Anticipator Setting: 0.2A plus valve load @ 24VAC





Prepurge: None

Trial for Ignition: 85 seconds

Flame Failure Response Time: 0.5 seconds max.

Retry: None

Replaces:

Johnson Controls G770RJA-1,
York 025-27762-700
