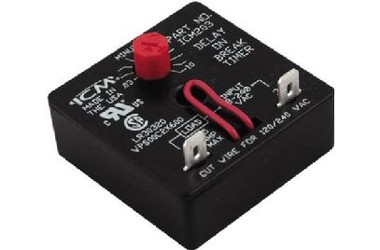

ICM203 42-ICM203 Adjustable Time Delay On Break Relay

The ICM203 Delay on Break Timer features an improved 1.5 amp power rating plus a newly designed package which includes a unique spin-proof knob.

Features

• 18-240V operation
• Adjustable time delays: .03-10 minutes
• Works with anticipator type thermostats
• One model replaces many in the field
• Simple 2 wire hookup
• Compact 50 x 50mm package


Specifications
Input
Control Voltage: 18-240VAC
Frequency: 50/60Hz or DC
Power Consumption: 2 watts max. during timing
Output
Ratings: max. 1.5 amp, min. 40mA, inrush 15 amp
Voltage Drop: 4.5V max. @ 1.5 amps
Leakage Current: 5 mA max. @ 240V
