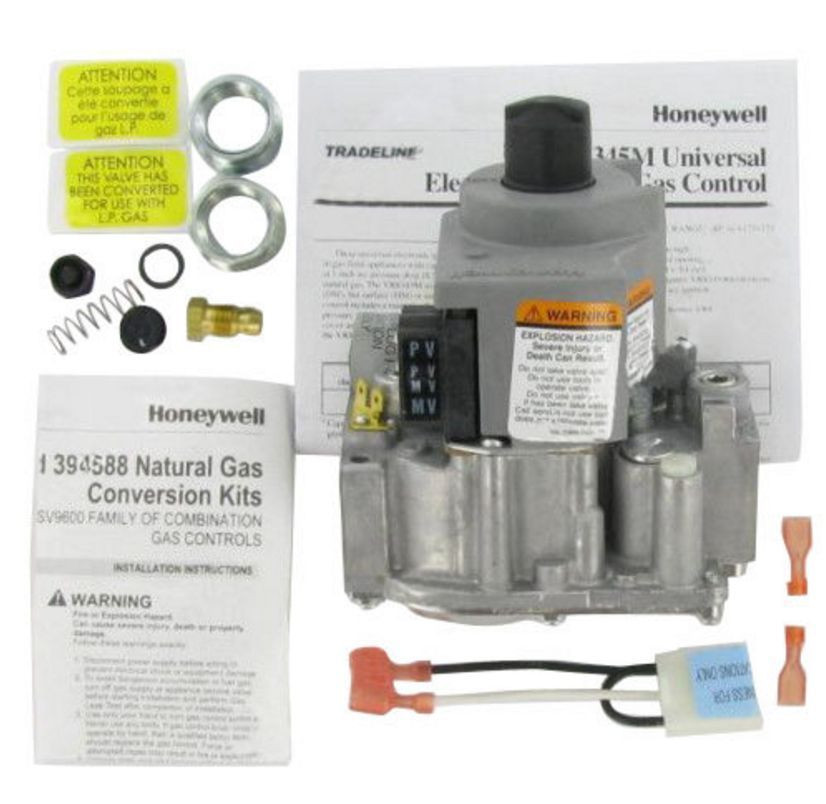

Honeywell VR8345M4302 Universal Ignition Gas Valve

Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24VAC, gas-fired appliances, with capacities from 30 to 415 CFH. Includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug, and ignition adapter. For use with natural or manufactured gas or LP gas. 415,000 BtuH maximum reg. for natural gas. Includes conversion kit to adapt from natural to LP gas. Uses 2 simple adapters to convert between IP and HSI/DSI applications and replaces more than 100 standard-opening IP, HSI or DSI valves. All adjustments and wiring connections accessible from top of control. Straight-through flow. 1/8" NPT pressure tap with plug.


Valve Type: Universal Electronic Ignition Gas
Coil Volts: 24V
Inlet/Outlet (In.): 3/4 x 3/4
Gas Type: Nat.
AGA Certified Capacity (CFH): 300
AGA Certified Capacity (Cu.-m/Hr.): 8.5
Amps AC: 0.7
Application: 2 Simple Adapters to Convert Between IP and HSI/DSI Applications and Replaces more than 100 Standard-opening IP, HSI or DSI Valve
Includes: (2) 3/4 X 1/2" NPT bushings and (1) 1/2 x 3/8" NPT bushing
Pressure Regulator: Standard
