Honeywell VR8245M2530 Dual Intermittent Pilot Gas Valve

Image 1

Hover over image to zoom

  • Image 1
SKU:
HONE258
Availability:
Usually ships within 24 hours
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

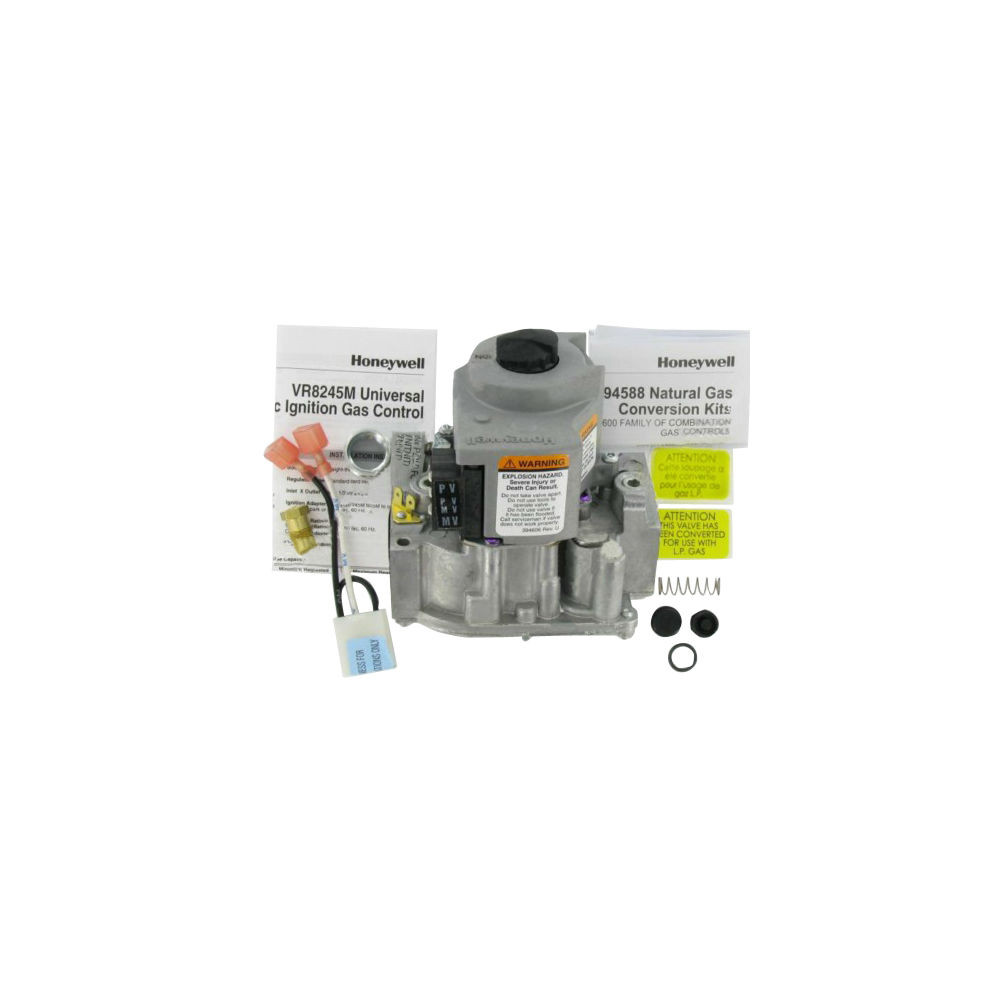

Honeywell VR8245M2530 Dual Intermittent Pilot Gas Valve

These universal electronic ignition gas controls are used in gas-fired appliances with capacities up to 150 cu ft/hour at 1 inch wc pressure drop (4.2 cu m/hour at 0.25 kPa) for natural gas. The VR8245M will operate with a direct spark (DSI), hot surface (HSI) or intermittent pilot ignition. The control includes a manual valve, two automatic operators, a pressure regulator, pilot adjustment, pilot plug and ignition adapter.

Product Specifications

Description 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting


Used in gas-fired appliances with capacities up to 150 cu ft/hour at 1 inch wc pressure drop (4.2 cu m/hour at 0.25 kPa) for natural gas. The VR8245M will operate with a direct spark (DSI), hot surface (HSI) or intermittent pilot ignition. The control includes a manual valve, two automatic operators, a pressure regulator, pilot adjustment, pilot plug and ignition adapter.

Includes: Natural to LP Conversion Kit, one 1/2" x 3/8" reducer bushing
Specifications:
  • Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
  • Type: Single Stage
  • Ignition Type: Intermittent Pilot
  • Type of Gas: Natural or LP
  • Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
  • Body Pattern: Straight-through
  • Opening Characteristics: Standard
  • Capacity @ 1 in. p.d.: 150,000 BTU/hr
  • Pressure Ratings (psi): 1/2 psi
  • Pressure Ratings (kPa): 3.5 kPa
  • Pressure Regulator Setting (psi): 3.5 in. wc
  • Pressure Regulator Setting (kPa): 0.9 kPa
  • Electrical Ratings: 24 Vac
  • Frequency: 60 Hz; 50 Hz
  • Temperature Range (F): -40 F to +175 F
  • Temperature Range (C): -40 C to +79 C
  • Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Cross Reference
VR8204A1201, VR8204A1219, VR8204A2001, VR8204A2175, VR8204A2803, VR8204A2076 VR8204M1075, VR8204M1091 36E01-204, 36E01-205, 36E01-206, 36E01-305, 36E93-304 722-079 (2000IPERHC) VR8205A2024 36G22-214 722-051 (2000DERHC) VR8205M1106, VR8205M2310, VR8205M2443 36E36-304, 36E22-214 720-079 (7200IPER), 720-080 (7200IPER-LP)
