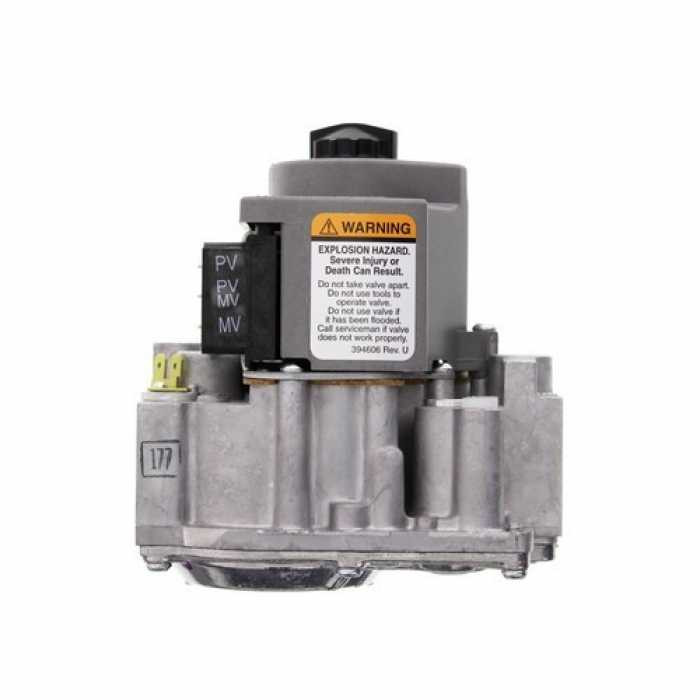

Honeywell VR8204M1091 Intermittent Pilot Gas Valve 1/2 x 1/2

Honeywell VR8204M1091 Intermittent Pilot Gas Valve 1/2 x 1/2 24V

Product Overview:

• Combination gas control for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 20 to 200 cfh
• Includes: Natural to LP Conversion Kit, one 1/2" x 3/8" reducer bushing, one 3/4" straight flange

Product Features:

• Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment
• Use with S86F,H; S8600F,H and S8610 Control Modules
• Compact size
• Provide two automatic valves
• Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
• Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
• Meets codes requiring dual safety shutoff
• Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
• All adjustments and wiring connections are accessible from top of control
• ON-OFF lighting sequence

Product Specifications:

• Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
• Type: Single Stage
• Ignition Type: Intermittent Pilot
• Type of Gas: Natural
• Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
• Body Pattern: Straight-through
• Opening Characteristics: Standard
• Capacity @ 1 in. p.d.: 150,000 BTU/hr; 20,000 BTU/hr minimum
• Pressure Ratings (psi): 1/2 psi
• Pressure Ratings (kPa): 3.5 kPa
• Pressure Regulator Setting (psi): 3.5 in. wc
• Pressure Regulator Setting (kPa): 0.87 kPa
• Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
• Pressure Tapping: 1/8 in. NPT with plug
• Electrical Connections: 1/4 in. quick-connect male terminals
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Anticipator Setting: 0.5 A
• Temperature Range (F): -40 F to +175 F
• Temperature Range (C): -40 C to +79 C
• Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
• Dimensions (in.): 4 15/16 in. high x 4 1/8 in. wide x 2 11/16 in. deep
• Dimensions (mm): 125 mm high x 104 mm wide x 69 mm deep
• Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006; CSA Design Certified: File No. L2025006
