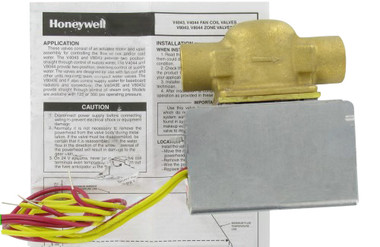

Honeywell V8043E1061 2 Way Normally Closed, 3/4', Sweat, 24Vac Zone Valve

Image 1

Hover over image to zoom

  • Image 1
SKU:
HONE71
Availability:
Usually ships within 24 hours
<123script type="text/javascript" src="//webapp.rivet.works/rivet.min.js">

 Product Description

Honeywell model V8043E1061 24V 50/60Hz Two Position Spring Return Normally Closed Straight Through zone valve With Spst End Switch. Has 3/4 inch copper solder connections, high capacity. Valve Opens When Energized. Controls Flow Of Hot And/Or Cold Water W/Manual Opener. 3/4 wire leads. 8 Cv flow rating with 8 Psi Close-Off.

  • ON-OFF and two-way low voltage valve
  • Manual opener for valve operation on power failure
  • Complete powerhead may be removed or replaced without breaking connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system.
  • Chilled water models available for cooling and heating applications.

Overview
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.



Features



  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
  • All models may be installed without disassembling the valve.
  • Compact construction for easy installation.
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
  • Actuator motor may be replaced without removing the valve body or draining the system.



Product Specifications

Application
Hydronic Control
Dimensions (in.)
4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
Dimensions (mm)
102 mm high x 89 mm wide x 60 mm deep
Comments
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.
Frequency
50 Hz; 60 Hz
Approvals, Underwriters Laboratories Inc.
UL Listed: File MH11826
Operating Humidity Range (% RH)
5 to 95% relative humidity, non-condensing.
Voltage
24 Vac; Power Consumption--7.7 VA
Timing
Nominal Open--15 sec
Ambient Temperature Range (F)
125 F Maximum
Ambient Temperature Range (C)
52 C Maximum
Connection Type
Sweat
Body Pattern
Two-way, Straight-through
Pipe Size (inch)
3/4 in.
Pipe Size (DN)
DN20
Current Draw
0.32A
Fluid Temperature (C)
10 C to 93 C
Fluid Temperature (F)
50 F to 200 F
Maximum Differential Pressure Ratings (Close-off) (psi)
8 psi
Maximum Differential Pressure Ratings (Close-off) (kPa)
55 kPa
Electrical Connections (in.)
18 in. leads
Electrical Connections (mm)
457 mm leads
Capacity (Cv)
8 Cv
Capacity (Kv)
6.9 Kv
Valve Action
Spring return to close
Valve Type
Zone Valve
Materials (Body)
Brass
Materials (Seat)
Brass
Materials (Stem)
Stainless Steel
End Switch Rating
50 VA pilot duty @ 24 V; 4.4 A running with 26.4 A inrush @ 120 V
Actuation
Two position
De-energized Position
Normally Closed
Auxiliary End Switch
N.O. SPST
Static Pressure Rating (psi)
125 psi
Static Pressure Rating (kPa)
862 kPa
Materials (Plug/Ball/Disc)
Buna-N (NBR) Rubber Ball
Materials (Packing)
EPDM rubber
Manual Opener
Yes
