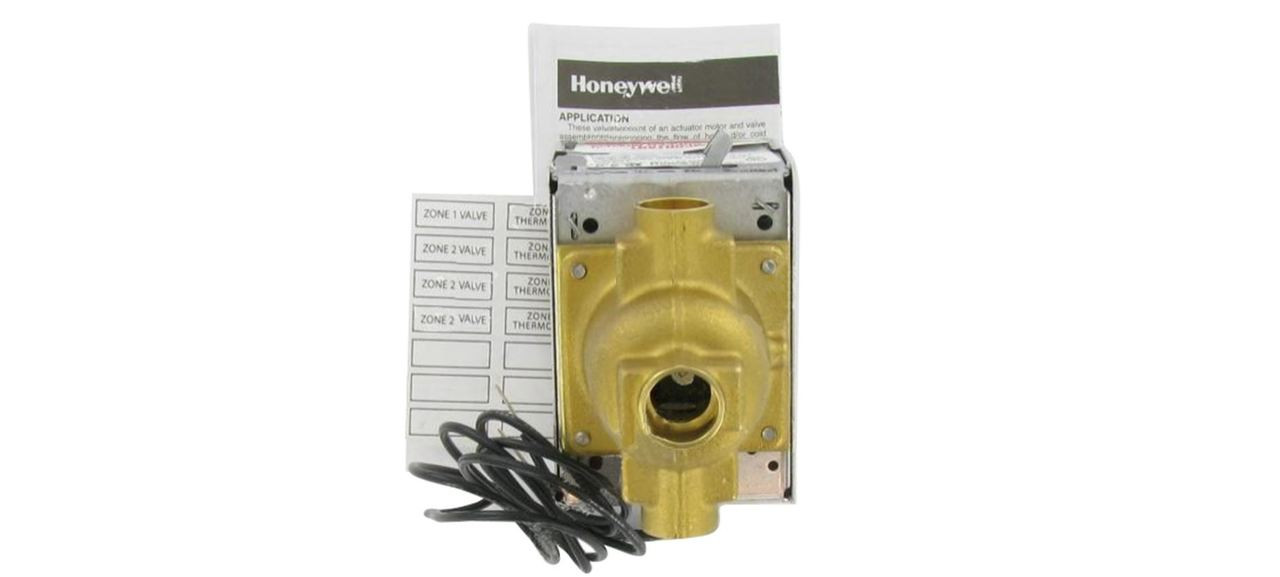

120V 1/2 in. Sweat Connection Line Voltage Motorized Zone Valves with 4 Cv capacity. ON-OFF and diverting line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water, and some models for steam.
- Manual opener for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking line connections or draining the system.
- Motor may be replaced without removing the valve body or draining the system.
- Suitable for heating and cooling applications.
Overview
On-off and diverting line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Motor may be replaced without removing the valve body or draining the system.
- Suitable for heating and cooling applications.
Product Specifications
- Application
- Hydronic Control
- Dimensions (in.)
- 4 5/8 in. high x 3 1/2 in. wide x 2 3/8 in. deep
- Dimensions (mm)
- 117 mm high x 90 mm wide x 60 mm deep
- Comments
- Valve designed for cycling (not constantly powered on) applications. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
- Frequency
- 60 Hz
- Approvals, Underwriters Laboratories Inc.
- UL Listed: File MH11826
- Operating Humidity Range (% RH)
- 5 to 95% relative humidity, non-condensing.
- Voltage
- 120 Vac; Power Consumption--9.6 VA
- Timing
- Nominal Open--30 sec
- Ambient Temperature Range (F)
- 125 F Maximum
- Ambient Temperature Range (C)
- 52 C Maximum
- Connection Type
- Sweat
- Body Pattern
- Three-way, Diverting
- Pipe Size (inch)
- 1/2 in.
- Pipe Size (DN)
- DN15
- Current Draw
- 0.08A
- Fluid Temperature (C)
- 5 C to 93 C
- Fluid Temperature (F)
- 40 F to 200 F
- Maximum Differential Pressure Ratings (Close-off) (psi)
- 20 psi
- Maximum Differential Pressure Ratings (Close-off) (kPa)
- 138 kPa
- Electrical Connections (in.)
- 18 in. leads
- Electrical Connections (mm)
- 457 mm leads
- Capacity (Cv)
- 4 Cv
- Capacity (Kv)
- 3.4 Kv
- Valve Action
- Spring Return to port A
- Valve Type
- Zone Valve
- Materials (Body)
- Brass
- Materials (Seat)
- Brass
- Materials (Stem)
- Stainless Steel
- Actuation
- Two position
- De-energized Position
- Port A Normally Closed
- Static Pressure Rating (psi)
- 125 psi
- Static Pressure Rating (kPa)
- 862 kPa
- Materials (Plug/Ball/Disc)
- Buna-N (NBR) Rubber Ball
- Materials (Packing)
- EPDM rubber
- Manual Opener
- Yes
