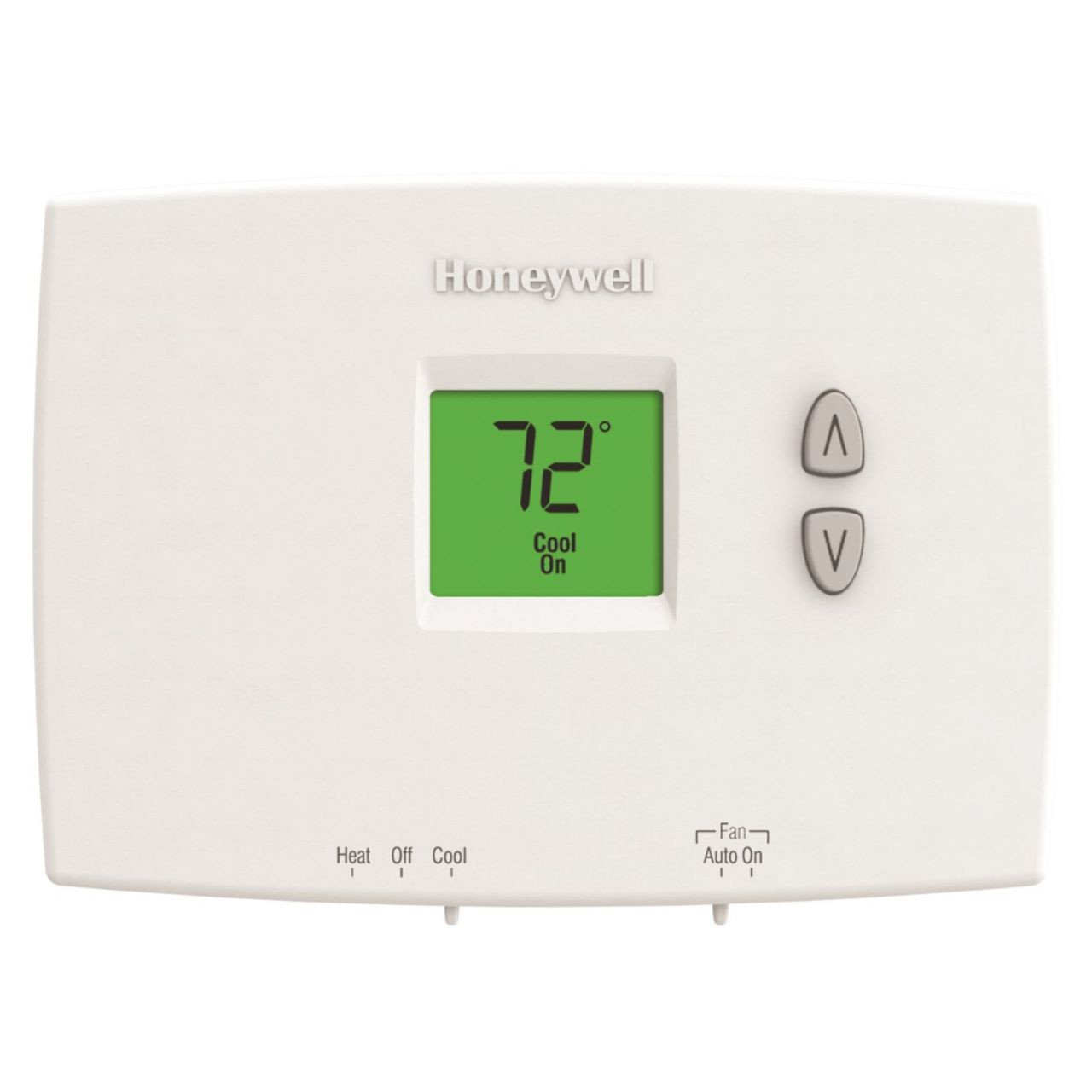

Honeywell TH1110DH1003 PRO 1000 Non-Programmable Thermostat

Image 1

Hover over image to zoom

  • Image 1
SKU:
HONE518
Availability:
Usually ships within 24 hours

 Product Description

Overview:

Working within a budget doesn't mean you have to sacrifice quality. Honeywell's PRO 1000 Non-Programmable Thermostat is perfect for multi-family housing developments or apartment complexes, PRO series thermostats feature the quality, reliability and performance that you can expect from Honeywell at a price that's just right.

* Dual Powered - Battery and/or Hardwire
* Horizontal Orientation
* Backlit Display - Easy to read in various lighting conditions.
* 2-Year Warranty

Your new Honeywell TH1110DH1003 PRO 1000 thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.

The PRO non-programmable family of thermostats provides basic and simple operation with specific models for conventional and heat pump systems.

Features:

  • Non-programmable digital thermostat.
  • Easy-to-read backlit display - easy to read in various lighting conditions.
  • Precise comfort control [±1 F (± 0.5 C)] - maintains consistent comfort to the highest level of accuracy.
  • Basic operation - easy-to-use slide switches allow you to select the heat or cool mode, and operate the fan.
  • Backlit display is easy to read
  • Displays ambient (measured) temperature at all times
  • One-touch access to setpoint temperature
  • Built-in compressor protection



Product Specifications:

Description - Non-programmable Digital Thermostat
Application  - 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Mounting - Horizontal
Changeover - Manual
Color - Premier White®
Stages - 1 Heat/1 Cool
Power Method - Dual Powered: Battery or Hardwire
Terminal Designations R, RC, C, W, Y, G, O, B
Switch Positions (Fan) - AUTO-ON
Switch Positions (System) - HEAT-OFF-COOL
Switch Type - Relay
Accuracy (F) ±1 F
Accuracy (C) ±0.5 C
Dimensions (in.) 3 7/16 in. High x 4 10/16 in. Wide x 1 3/16 in. Deep
Dimensions (mm) 87mm High x 119mm Wide x 30mm Deep
Setting Temperature Range (F) Heat: 40 F to 90 F; Cool: 50 F to 99 F
Setting Temperature Range (C) Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Electrical Ratings 20 to 30 Vac or 750 mV
Frequency 50 Hz
Frequency 60 Hz
Cycles per Hour Heating 2 - 6 CPH; Cooling 2 -6 CPH
Cool Current 0.02 A to 1.0 A running
Heat Current 0.02 A to 1.0 A running
Sensor Element Thermistor
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Display Size - 1.32 sq in.
Voltage - 20 to 30 Vac or 750 mV
