Honeywell HZ432K Truezone Kit- 4 Zone Panel

Honeywell HZ432K Truezone Kit
TrueZONE HZ432 Panel for conventional, heatpump or dual fuel applications expandable up to 32 zones (3H/2C). Kit for conventional, heat pump or dual-fuel applications expandable up to 32 zones (3 heat/2 cool). Intuitive installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps. Standard checkout procedure. Robust push terminals. Variable-speed fan control. Discharge air temperature staging. Advanced dual-fuel operation. Use with TAZ-4 Add-A-Zone to expand to 32 zones. RedLINK™ enabled for up to four wireless zones when used with THM4000R1000 wireless adapter. Controls up to 3 heat/2 cool, conventional or heat pump. Controls up to two stages compressor and two stages fossil fuel in dual fuel mode. Heat pump compatible. Includes HZ432 zone control panel, AT140 transformer, C7735A discharge air temperature sensor.


Features

• Intuitive Installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps.
• Standard Checkout Procedure
• Robust Push Terminals
• Common-Sense LEDs
• Clean, Professional Installation
• Smaller Footprint
• Variable-Speed Fan Control
• Discharge Air Temperature Staging
• Advanced Dual-Fuel Operation
• RedLINK enabled for wireless operations when used with THM4000R1000 Wireless Adapter
• 4 Zone, Three-Stage Heat/ Two-Stage Cool Zone Control Panel w/ Discharge Air Sensor and Transformer, Heat Pump and Duel-Fuel System Compatible

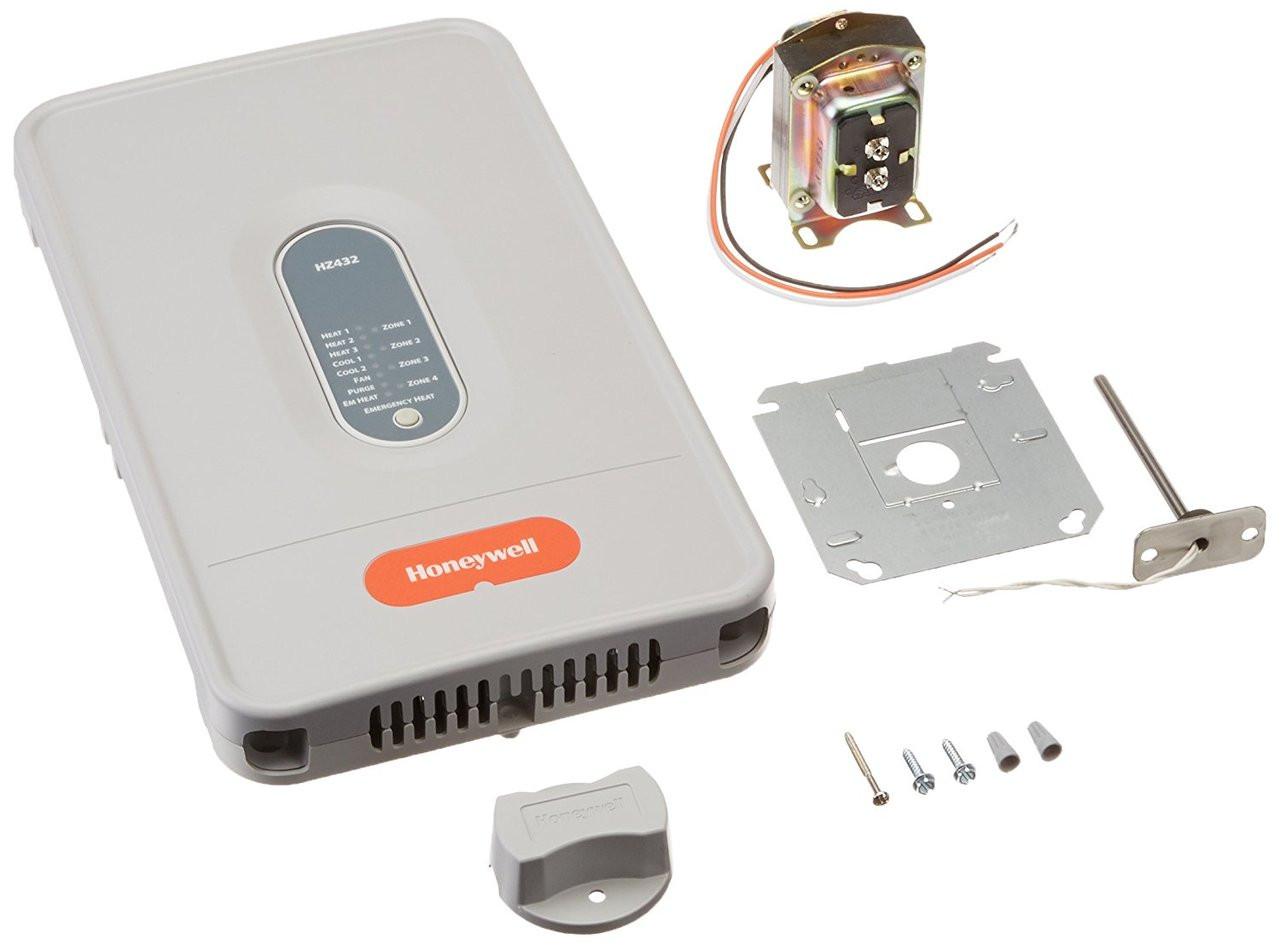

TrueZONE HZ432 Panel for conventional, heatpump or dual fuel applications expandable up to 32 zones (3 Heat /2 Cool). This kit includes one HZ432 Panel, one C7735A1000 DATS, and one AT140A Transformer.

Features

• Intutive Installer setup. Easy-to-follow, digital display uses real language to guide installer through four easy steps.
• Universal Application .
• Standard Checkout Procedure.
• Robust Push Terminals.
• Common-Sense LEDs.
• Clean, Professional Installation.
• Smaller Footprint.
• Variable-Speed Fan Control.
• Discharge Air Temperature Staging.
• Advanced Dual-Fuel Operation.
