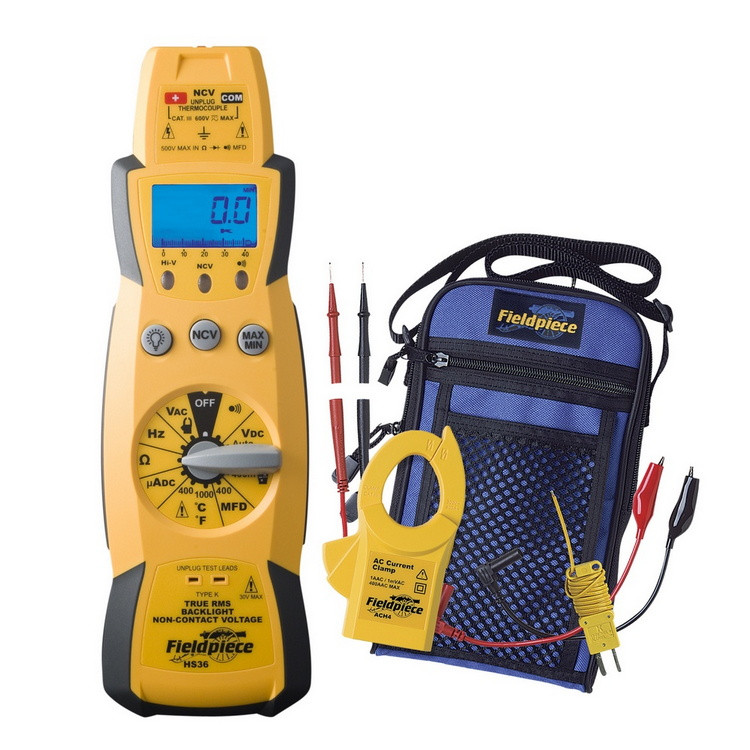

Fieldpiece HS36 Stick Meter True RMS /Backlight

Hover over image to zoom

  • Image 1
SKU:
FIEL1
Availability:
Usually ships within 24 hours

 Product Description

Features & Applications:

The Fieldpiece Stick Meter with True RMS is designed specifically for HVAC/R field technicians. Tests micro amps for flame rectifier diode tests and the ability to measure frequency.

All of Fieldpiece's accessory heads work with the Fieldpiece Stick Meter. With the appropriate accessory head, this meter can measure the following parameters: AC amps, RH%, wet bulb temperature, air temperature, dew point, carbon monoxide, dual temperature, non contact (IR) temperature, air velocity, gas pressure, static pressure, vacuum, milliamps, micro amps, and carbon dioxide.

Features:



  • True RMS
  • Backlit
  • Digital Multimeter
  • K-type thermocouple
  • Capacitance
  • Non-contact voltage sensing
  • Silicone rubber test leads with storage on the back
  • High-voltage indicator
  • Current clamp head
  • Rugged rubberized case with built-in magnetic hanger
  • Alligator clips
  • LED and a beeper to indicate continuity

Spec Summary:



Backlight:

Yes

Display:

3 3/4 digit liquid crystal display (LCD) with a maximum reading of 3999

Auto Power-off:

30 minutes

Operating Environment:

32 to 122°F at <70%RH

Power:

Single standard 9V battery, NEDA 1604, JIS 006P, IEC 6F22

Battery Life:

300 hours typical with alkaline

TemperatureRange:

-30 ~ 1000°F

DC VoltsRanges:

400mV, 4000mV, 40V, 600V

AC Volts (50 - 500Hz) Ranges:

400mV, 4V, 400V, 600V

DC CurrentRanges:

400µA, 4000µA

ResistanceRanges:

400 ohm, 4k ohm, 40k ohm, 400k ohm, 4M ohm

CapacitanceRange:

400400µF

FrequencyRanges:

4k, 40k, 400k, 4M, 40MHz

1 year warranty
