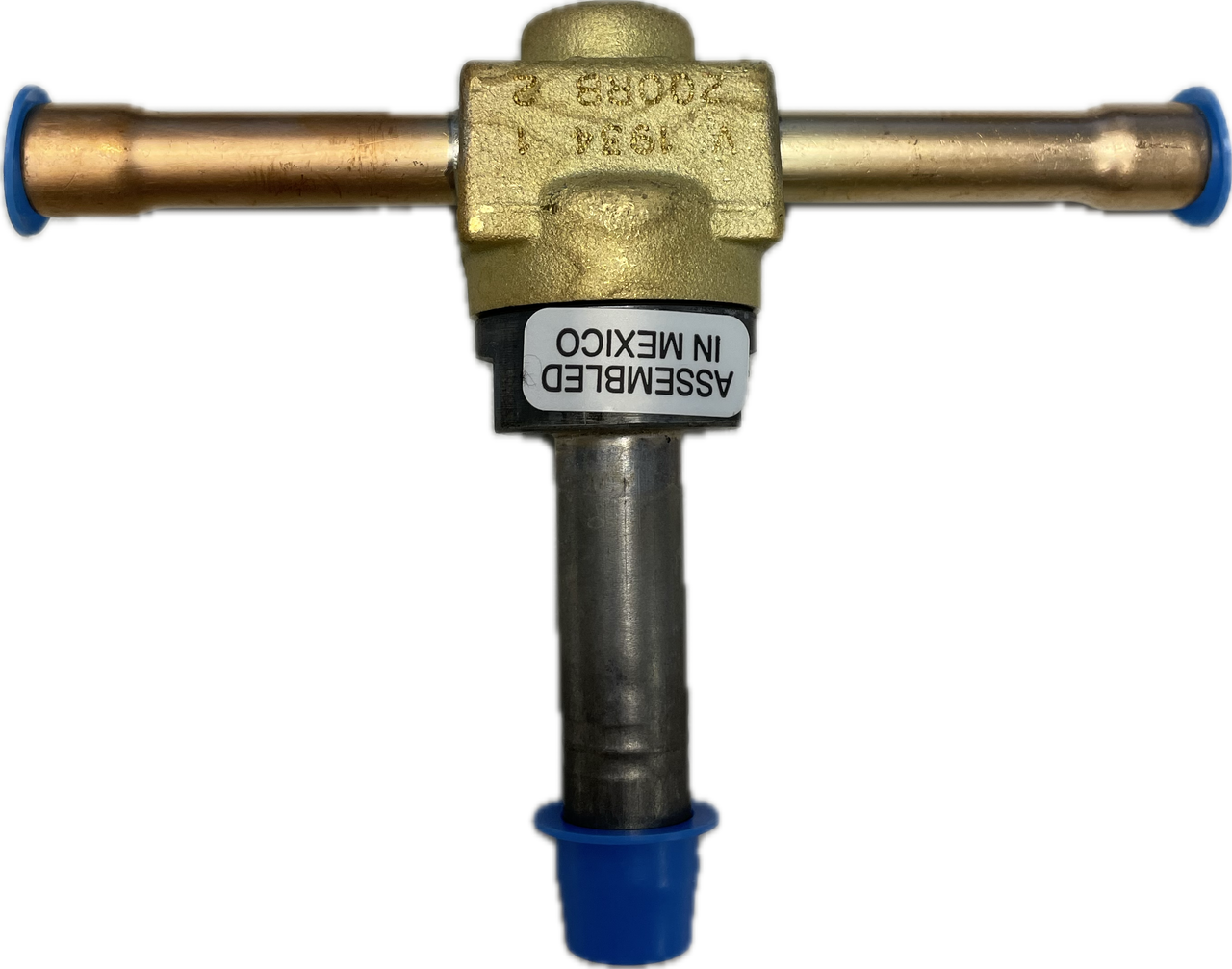

Emerson 200RB Series 2T3 Refrigerant Solenoid Valve

The 200RB is a pilot-operated, 2-way, normally closed valve. 200RB valves are used for liquid, discharge, or suction gas refrigerant service.

• One coil fits all valve sizes
• Extended ends for easy installation (standard)
• Long-life molded coils
• PTFE O-ring for superior external sealing


• Valve Type Pilot Operated, 2-Way, Normally Closed
• Port Size 1/8”
• Inlet Connection Size 3/8” ODF Extended End
• Outlet Connection Size 3/8” ODF Extended End
• Special Feature Standard Valve
• Maximum Fluid Temperature 250°F
• Maximum Working Pressure 680 psig
• Minimum Operating Pressure Drop 2 psi
• MOPD 300 psig
• Approvals UL/CUL File Number MP604
