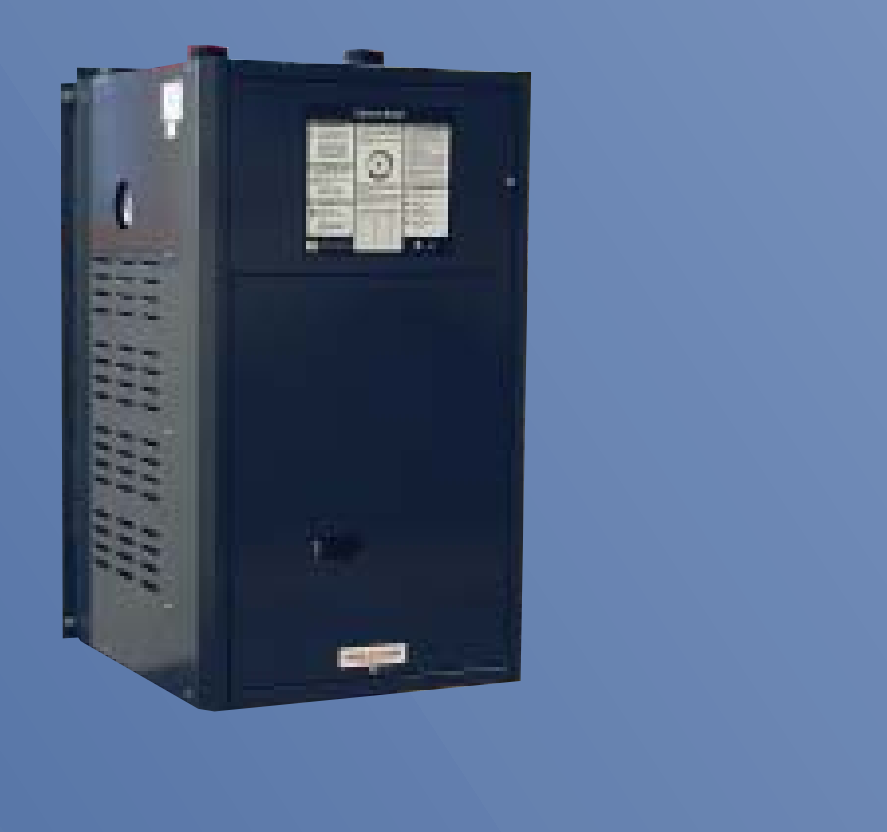

Electro EB-WX-27 27 kW 92K BTU Electric Boiler

EB-WX-27 TS Series WarmFlo Electro Industries Electric Radiant Heating Outdoor Reset Modulating Boiler-92,000BTU Our most deluxe model is designed for multiple temperature and zoning applications. This model has the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity). This model eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. More experienced installers use this boiler to avoid the extra cost of the above.Outdoor sensing with outdoor reset capability. The target supply temperature ramps up as it is colder outside

As part of the EB-WX WarmFlo Electric Boiler Series, the TS Series electric boiler offers complete application flexibility. Features - 185 F hi-limit, compact, easy to install, ASME "H" Stamp, and parcel post shippable. The focus of this new design is to provide the installer with an easy access control board, a smaller, more compact design, and built-in temperature control. All of these features add up to a electric radiant heating boiler that is easier to use and install, which in turn saves you money. TS Series EB-WX WarmFlo Electro Boiler is Modulates at a tighter temperature control-Modulating.WarmFlo represents the controlling mechanism within your heating system to "smooth out" the energy capacity within the furnace or boiler to make sure it adjusts to the load capacity requirement at each thermostat call for heat.

WarmFlo is the 21st century controller for your heating system. It applies to any electric or dual heat system, new or retrofit. This article presents only two applications - electric boiler and heat pump - do not overlook other applications and the many WarmFlo benefits.

EB-WX-27 TS Series WarmFlo Electro Industries Electric Radiant Heating Outdoor Reset Modulating Boiler at a glance:

Outstanding Efficiency

• 100% efficient.

Outdoor Sensor-Outdoor Reset

• Outdoor sensing with outdoor reset capability. The target supply temperature ramps up as it is colder outside.

Lasting Performance

• 6.55 gallon steel vessel ASME "H" Stamp (20-year warranty).

Easy Monitoring

• LED indicator lights.

Reliable Safety

• Hi-limits: 1st - automatic reset at 190 F, 2nd - manual reset at 205 F.

Advanced Control System.

• Built-in electronic water temperature control with front panel temperature select.

Multiple Applications

• Stand alone, Solar backup, Dual fuel systems.

Easy Installation, Service and Maintenance

• Electro Industries Mini Boiler has all pipe connections located at the top and bottom and serviceable components easily accessible from the front.

Compact, Lightweight Design and Zero clearance to Combustibles

• Make it Electric Mini EMB-S Boiler a great choice for limited-space installations.

EB-WX-27 TS Series WarmFlo Electro Industries Electric Radiant Heating Outdoor Reset Modulating Boiler Other Standard Features :

• Controls and control wiring terminals.
• LED indicator lights.
• DC Power Relays
• Circulator switching relay - 10-amp maximum
• Thermostat or end switch connection (R and W)
• Load management control provisions
• Heavy duty sheet metal enclosure
• Supply pressure/temperature gauge
• Safety relief valve (30 PSI)
• Heating elements (20-year warranty)
• 2-year parts warranty
• Supply water sensing
• Temperature range 90 F to 185 F
• ASME/CSA listings
• Made in the USA
• Factory tested.

EB-WX TS Series Electro Industries WarmFlo Electric Radiant Heating Modulating Boiler Warranty

2 years parts / 20 years Heating Elements/ 20 Years Vessel

Electro Electric Boiler EB-WX-27 is designed for multiple temperature, high temperature, and zoning applications. This model has the ability to sense water temperature and maintain an accurate boiler temperature output by only energizing the electric elements for needed output (not full capacity) up to 92,000 Btu's. This electric boiler eliminates extra costs associated with relays, extra temperature controls, zone boxes, etc. Our more experienced installers use t his boiler to avoid the extra cost of the above.

The front panel temperature knob allows you to simply dial in your desired output temperature and the TS will automatically adjust to meet your water temperature needs.

Electro EB-WX-27 replaces the Electro Boiler EB-WA-27 Electric Boiler.

• Volts

  240

• 3 Stage

  4.5kw Modulating, 4.5kw, 9kw, 9kw

• Max Heating Temperature

  180 Degrees F

• Safety relief valve

  30 PSI

• Amps

  113

• Kw

  27

• Phase

  1

• Btu

  92,000

• Circiut Breaker

  3 - 60 Amps

• Boiler Heating Supply/Return Connections

  1 Inch

ElectroTemperature Sensing Boiler - EB-WX-27 Features

• Built-in temperature pressure gauge
• -->
